Protection Radiation Lead 12mm X Ray Shielding Glass 600 X 900mm
X Ray Protection Radiation Lead Glass 600 x 900mm
Quick Detail:
· Thickness 8/ 10/ 12/ 15/ 18/ 20/ 23/ 25mm
· Lead equivalent 1.7/ 2.1/ 2.6/ 3.3/ 3.96/ 4.4/ 5.8/ 6.71mmpb
· Size from 200* 300mm to 1200* 2400mm
· CE Certificate
Specification:
| 8mm | 10mm | 12mm | 15mm | 18mm | 20mm | 25mm | |
| ( 1.7mmpb) | ( 2.1mmpb) | ( 2.6mmpb) | ( 3.3 mmpb) | ( 3.96 mmpb) | ( 4.4 mmpb) | ( 6.71 mmpb) | |
| 200* 300 | 200* 300* 8 | 200* 300* 10 | 200* 300* 12 | 200* 300* 15 | 200* 300* 18 | 200* 300* 20 | - |
| 300* 400 | 300* 400* 8 | 300* 400* 10 | 300* 400* 12 | 300* 400* 15 | 300* 400* 18 | 300* 400* 20 | - |
| 400* 600 | 400* 600* 8 | 400* 600* 10 | 400* 600* 12 | 400* 600* 15 | 400* 600* 18 | 400* 600* 20 | - |
| 600* 800 | 600* 800* 8 | 600* 800* 10 | 600* 800* 12 | 600* 800* 15 | 600* 800* 18 | 600* 800* 20 | - |
| 600* 900 | 600* 900* 8 | 600* 900* 10 | 600* 900* 12 | 600* 900* 15 | 600* 900* 18 | 600* 900* 20 | - |
| 1000* 800 | 1000* 800* 8 | 1000* 800* 10 | 1000* 800* 12 | 1000* 800* 15 | 1000* 800* 18 | 1000* 800* 20 | 1000* 800* 25 |
| 1200* 800 | 1200* 800* 8 | 1200* 800* 10 | 1200* 800* 12 | 1200* 800* 15 | 1200* 800* 18 | 1200* 800* 20 | 1200* 800* 25 |
| 1200* 900 | 1200* 900* 8 | 1200* 900* 10 | 1200* 900* 12 | 1200* 900* 15 | 1200* 900* 18 | 1200* 900* 20 | 1200* 900* 25 |
| 1200* 1000 | 1200* 1000* 8 | 1200* 1000* 10 | 1200* 1000* 12 | 1200* 1000* 15 | 1200* 1000* 18 | 1200* 1000* 20 | 1200* 1000* 25 |
| 1200* 1200 | - | 1200* 1200* 10 | 1200* 1200* 12 | 1200* 1200* 15 | 1200* 1200* 18 | 1200* 1200* 20 | 1200* 1200* 25 |
| 1500* 900 | - | 1500* 900* 10 | 1500* 900* 12 | 1500* 900* 15 | 1500* 900* 18 | 1500* 900* 20 | 1500* 900* 25 |
| 1500* 1000 | - | 1500* 1000* 10 | 1500* 1000* 12 | 1500* 1000* 15 | 1500* 1000* 18 | 1500* 1000* 20 | 1500* 1000* 25 |
| 1500* 1200 | - | 1500* 1200* 10 | 1500* 1200* 12 | 1500* 1200* 15 | 1500* 1200* 18 | 1500* 1200* 20 | 1500* 1200* 25 |
| 1600* 1000 | - | 1600* 1000* 10 | 1600* 1000* 12 | 1600* 1000* 15 | 1600* 1000* 18 | 1600* 1000* 20 | 1600* 1000* 25 |
| 1600* 1200 | - | 1600* 1200* 10 | 1600* 1200* 12 | 1600* 1200* 15 | 1600* 1200* 18 | 1600* 1200* 20 | 1600* 1200* 25 |
| 1800* 1000 | - | 1800* 1000* 10 | 1800* 1000* 12 | 1800* 1000* 15 | 1800* 1000* 18 | 1800* 1000* 20 | 1800* 1000* 25 |
| 1800* 1200 | - | 1800* 1200* 10 | 1800* 1200* 12 | 1800* 1200* 15 | 1800* 1200* 18 | 1800* 1200* 20 | 1800* 1200* 25 |
| 2000* 1000 | - | 2000* 1000* 10 | 2000* 1000* 12 | 2000* 1000* 15 | 2000* 1000* 18 | 2000* 1000* 20 | 2000* 1000* 25 |
| 2000* 1200 | - | 2000* 1200* 10 | 2000* 1200* 12 | 2000* 1200* 15 | 2000* 1200* 18 | 2000* 1200* 20 | 2000* 1200* 25 |
| 2400* 1200 | - | 2400* 1200* 10 | 2400* 1200* 12 | 2400* 1200* 15 | 2400* 1200* 18 | 2400* 1200* 20 | 2400* 1200* 25 |
Description:
Lead glass is
a. Uniformly dense and is a composition of high-quality materials providing a dependable shielding value.
b. Utilized for medical x-ray, gamma, alpha, and beta photon shielding only.
c. Not for thermal neutron or fast neutron shielding. X-Ray lead glass will NOT shield against Magnetic Resonance Imaging (MRI), electro-magnetism or radio-frequency, ultrasound, laser or any non-ionizing type of radiation.
Application:
Lead glass is mainly used in the manufacturing of optical instruments, art vessels, etc.
Lead glass is also known as medical X- ray radiation-proof lead glass plate in the medical field.

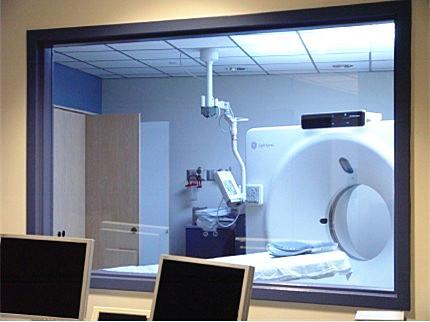

Lead glass is mainly used for diagnostic X- ray machine rooms, CT, ECT, PET, ct- pet and other machine
rooms,
as well as observation Windows on the protective screen of protective doors.
FAQ:
12mm Thick 1200 X 800 Xray CT Room Radiation Protection Lead Glass
Q1. What about the lead time?
A: Usually 5-7 working days.
Q2. Can I have a sample order for lead glass?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3. How to proceed an order for lead glass?
A: Firstly let us know your requirements or size, thickenss and also quantity.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms.
Fourthly We arrange the production.
