Faraday Cage Pure Copper Foil 4oz Thick Shielding Conductive
Quick Detail:
A. 0.140mm thickness
B. 1320mm
C. In roll shape and in wooden case
Description:
a. Copper with 1320mm width or wider, can be easier to install, especially for roofing, wall, and floor.
b. Lightweight
c. Copper serves as an eddy current shield for EMI protection
Specification:
| Quality Items | General Technical Terms | |||||
| Normal Thickness | 2 oz 0.07 mm |
3 oz 0.105 mm |
4 oz 0.140 mm |
5 oz 0.175 mm |
6 oz 0.210 mm |
|
| Area Weight (g/sqm) | 560-610 | 838-960 | 1100-1280 | 1380-1600 | 1650-1920 | |
|
Tensile Strength (kg/sqmm) |
Room Temperature | ≥28 | ≥28 | ≥28 | ≥28 | ≥28 |
|
Elongation (%) |
Room Temperature | ≥10 | ≥10 | ≥10 | ≥10 | ≥10 |
|
Leakage Points (Points/sqm) |
No | |||||
| High Temperature Anti-Oxidization Performance(180℃/h) | No Oxidization | |||||
| Width(mm) | 1280-1295 | 1320-1370 | 1320-1370 | 1320-1370 | 1320-1370 | |
| Width Tolerance(mm) | (-2.0,+2.0) | |||||
Application:

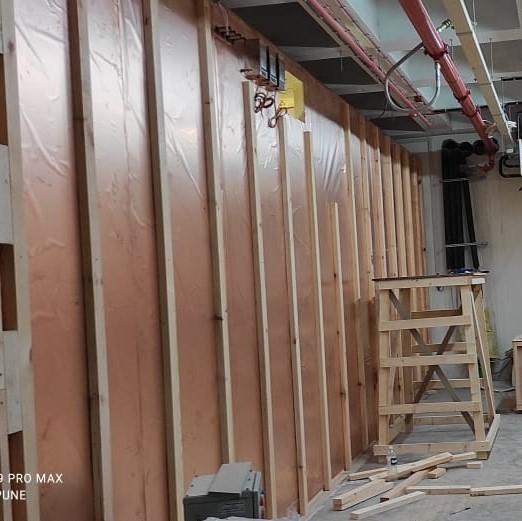

MRI RF Room Shielding Installation and Faraday Cage.
FAQ:
1. What service can you offer?
High-quality products, competitive price, warm service.
2. What shipment way can you offer?
By air, by sea, by train and also by express.
3. What is MOQ ?
200 - 250kg per roll.
