Electrolytic Cu Foil Shielding 0.1mm 1320mm Sheet To Rf Cage

Price Negotiable

Price: usd17.1-usd21.59/kg

MOQ: 250kg

Delivery Time: 5-8working days

Brand: Jovi

Product Description

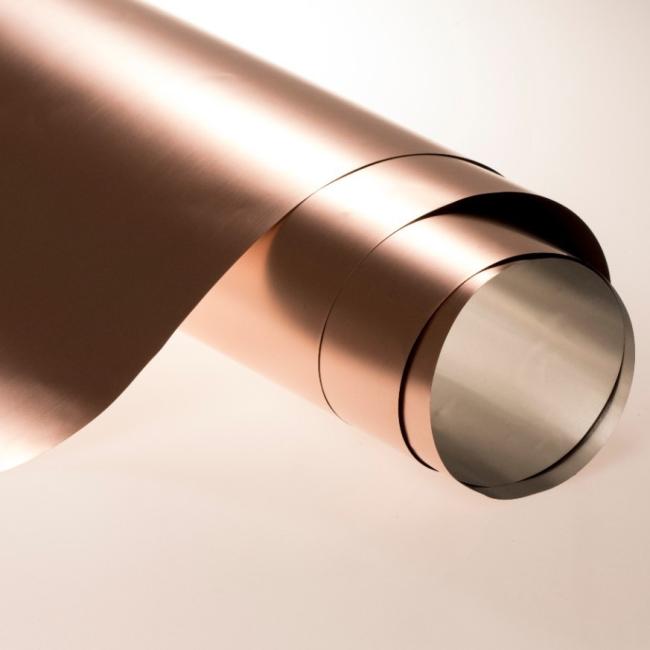

Electrolytic 0.1mm 1320mm Copper Foil Shielding Sheet For RF Cage

The raw foil, which has a glossy surface with ultra low roughness on both sides, is treated with JIMA's proprietary micro-roughening process to achieve high anchoring performance and also ultra low roughness. It offers high performance in a wide range of fields, from rigid printed circuit boards that prioritize transmission properties and fabrication of fine pattern to flexible printed circuits that prioritize transparency.

Detail

● ID: 76 mm, 152 mm
● Roll Length/Outer diameter/Inner diameter: as request
● Core length: as request
● Core material: Paper and ABS plastic & Customize
● Sample can be supply
● Inner Package: can supply Vacuum packaging if need

Features

● Low profile for FCCL
● Grain structure of copper foil leads to high flexibility
● Excellent etching performance
● The treated foil is red or black
● Low profile enables to make fine circuit pattern

Typical application

● Casting and lamination type FCCL
● Fine pattern FPC&PWB
● Chip on flex for LED
● For FPC or Inner layer
● For a wide range of applications, from circuit boards to optics.

Item	Unit	Condition	Specification value					Inspection frequencies	Test method
Item	Unit	Condition	12 um	18 um	35 um	70 um	105 um	Inspection frequencies	Test method
Purity	%	A	≧ 99.8					C	IPC-TM-650-2.3.15
Area weight	g/㎡	A	107±10	152±15	305±30	610±61	915±91	А	IPC-TM-650-2.2.12
Untreated Side Roughness (Ra)	um	A	<0.43					А	IPC-TM-650-2.2.17
Treated Side Roughness(Rz)	um	A	≤7	≤8	≤10	≤14	≤14	А	IPC-TM-650-2.2.17
Tensile strength	kg/mm2	A	≥21	≥21	≥28	≥28	≥28	А	IPC-TM-650-2.4.18
Tensile strength	kg/mm2	180℃	≥15	≥15	≥15	≥15	≥15	А	IPC-TM-650-2.4.18
Elongation	%	A	≥3	≥4	≥5	≥5	≥5	А	IPC-TM-650-2.4.18
Elongation	%	180℃	≥3	≥3	≥3	≥3	≥3	А	IPC-TM-650-2.4.18
Peel strength (RT) FR-4	kg/cm	A	≥1.0	≥1.3	≥1.7	≥2.1	≥2.3	А	IPC-TM-650-2.4.8
