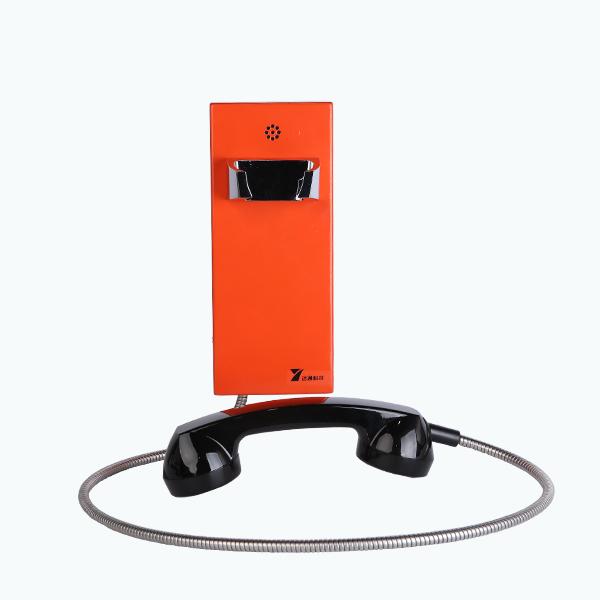

Cold Rolled Steel Jail Telephone
The prison phone has a solid appearance that prevents damage and long service life. Wall-mounted installation methods, the phone is installed on the wall, facilitating prison staff, saving space, promoting management. We not only provide telephone equipment, but also provide a telephone communication solution, our independent IP solution prisoner call. It has a simple installation, simple handle, stable operation, and strong compatibility. Phone accessories and mobile phone shell color can be customized
MAIN FEATURES
- Standard Analogue/ SIP/ GSM/ 3G, 4G Phone
- Robust housing, Adopt High quality Cold rolled steel, durable, anti-violence damage Weather proof protection IP54~IP66
- Vandal resistant handset and armored cord
- Programmable for auto-dial
- Can be programmed remotely by tone phone or locally via keypad
- Non-volatile memory
- Wall mounting, simple installation
- Inductive coupler fitted as standard for hard of hearing
- Phone line powered (Analog)
- External Power supply or PoE (SIP phone)
- CE, FCC, ISO9001, RoHS compliant
Telephone Paramenters
SIP VoIP Version
- Speech Coding: G.711A/ u, G.7321 high/ low, G.729 a/ b, G.722, G.722.1, G726.
- Echo Cancellation Code: G.167 /G.168
- Circumstance noise: ≤ 60dB(A).
- Sound Level of Ringing: >90dB(A).
- Auxiliary Contact: 1Aux output, dry contact.
- Power Supply: AC110--240V or PoE .
- Rated Carry Current:1A
- DTMF: VoIP SIP Info DTMF Relay, RFC2833
- LAN Protocols: Power over Ethernet(PoE, 802.3af)
- WLAN: IEE802.3af, Network Access Control: IEEE802.1x
- IP Protocols: IPV4, UDP, DHCP, SIP.
- MTBF:100,000 hours. MTTR: 2 hours.
Analog version
- Ambient Temperature: -30 ~ +70 degree celsius
- Relative Humidity: 10% ~95%
- Atmospheric Pressure: 86 - 106kpa
- Sound Level of Ringing: >80dB(A). 1w speaker
- Standard Frequency: Low frequency 697, 770, 852, 941Hz. High frequency1209, 1336, 1477Hz.
- Frequency Deviation: -1.5% ~ +1.5%
- Call Transmission Index: (5km) SLR<12, RLR<-1, STMR>10, output impedance is 600ohm.
- Applicable for various types of PABX with feeding voltage of 33-60V
- MTBF:100,000 hours.
- MTTR: 2 hours.
2G 3G 4G version
- GSM PCB Support: 2G, 3G, 4G modules.
- Solar Panels: 18w/30w/55w (options)
- Working Frequency Rage: GSM Frequency 850/900/1800/1900MHZ
- (WCDMA850/1900Mhz is an option).
- Suopported: SMS or GPRS
- Sound Level of Ringing: >80dB(A). 2w speaker
- Power Supply: 12V DC/ 110/220V AC, battery, solar.
- Antenna: Solder pads for Primary, Rx-diversity and GNSS antennas.
- Humidity Conditions: 10% - 95%
- MTBF:100,000 hours.
- MTTR: 15min.
PACKAGE
Dimensions
Unit size:260*150*130mm Unit: N.W:2.14KG
Package Reference
1pcs packing box size: 340*235*165mm Unit N.W:2.14KG Unit G.W:3KG
Packaging materials: pearl cotton, carton;
