Standard Keypad IP68 VOIP Industrial Waterproof Sip Phone Outdoor

Price Negotiable
Price: Negotiatable
MOQ: 1
Delivery Time: 15-25 days
Brand: Yuantong
Product Description

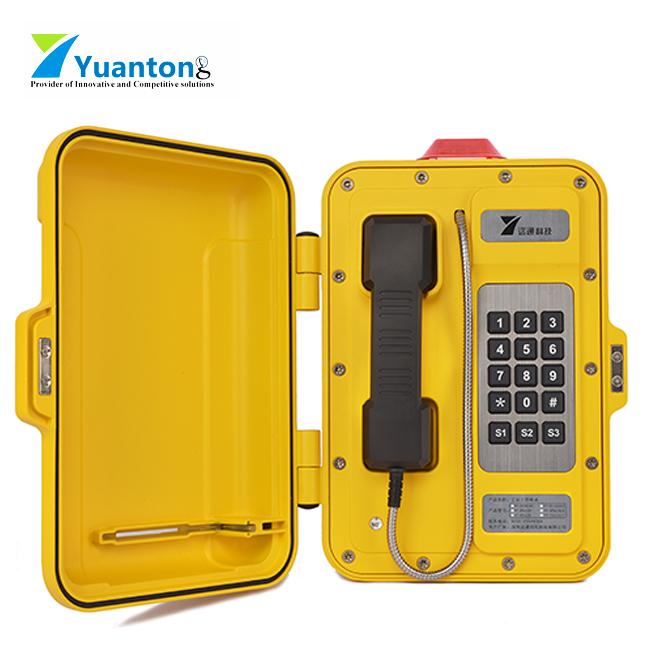

Standard Keypad Outdoor Industrial VOIP Telephone IP68 VOIP Telephone



Our industrial VoIP phone features a corrosion-resistant, vandal-resistant cast aluminum waterproof housing with a magnetically gravitational door that completely prevents the ingress of dust and moisture, extending product life and improving product reliability and stability. It is especially suitable for installation in areas with high dust, humidity, loud noise, and outdoors.

This series of phones is specially designed for use in various extreme environments, and all electronic components are industrial-grade products that are resistant to high and low temperatures. Therefore, our phone can still be used normally in the extreme temperature environment of 70 degrees to minus 40 degrees.





Main Features



1. Standard SIP/VoIP phone
2. Aluminum alloy die-casting body, strong impact resistance
3. Anti-vandal handset and armored wire
4. Waterproof and anti-vandal keyboard
5. Protection class IP68
6. A variety of colors to choose from
7. Wall-mounted, easy to install
The metal shell has a grounding device, which is absolutely insulated from the internal circuit and electrical, and plays the role of electromagnetic shielding





Technical Parameters



Signal voltage 100-230VAC
Standby working current ≤0.2A
Frequency Response 250~3000 Hz
Ringing level ≤80dB(A)
Amplified output power 10~25W
Anticorrosion grade WF1
Ambient temperature -20~+60℃
Atmospheric pressure 80~110KPa
Relative humidity ≤95%
Lead hole 3-PG11
Installation method wall-mounted







Application



This Industrial VoIP telephone is very popular for Tunnels, Mining, Marine, Underground, Metro stations, Railway platform, Highway side, Hotels, Parking lots, Steel Plants, Chemical plants, Power plants and relatedheavy duty industrial application, etc.





Package



Unit Size: 373 *282 *137(mm)
Carton Dimension: 400 *352 *150(mm)
Packaging materials: corrugated box, pearl cotton lining
Net Weight: 7.2KG
Gross weight: 8.5KG





Certification



We have our own product proprietary intellectual property rights and patents, and have been a unique and professional telephone manufacturer company with certifications of IP68 Waterproof Standard, EN Railway 50121, CE and FCC in China. We have formed good cooperation with some famous companies at home and abroad, such as Siemens, FHF, Alcate, Schlumberger, TTIC, ZET, Huawei, etc. Our market network expands to the USA, Canada, France, Russia, Italy, Norway, Switzerland, Finland, Denmark, Germany, Portugal, the Netherlands, Britain, Brazil, Chile, Venezuela, Mexico, Argentina, Malaysia, India, Vietnam, Thailand, Singapore, Pakistan, Nigeria, South Africa, Egypt, Sudan, Tunis, Kenya, Tanzania, Morocco, etc.
