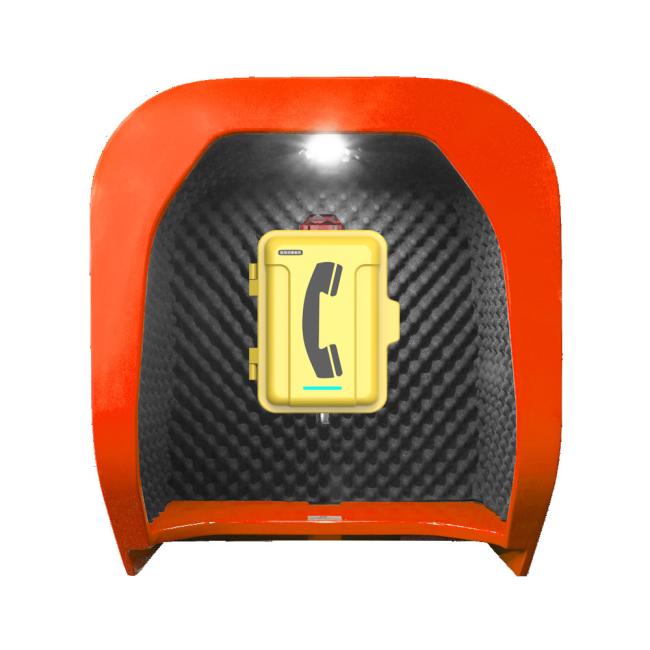

Acoustic Hood Booths Wall Mounting Vandal Proof Industry Telephone

Vandal Proof Industry Telephone Acoustic Hood Acoustic Telephone Booths

• Dimensions - 780*680*500 (mm)
• Weight - Approx 22 Kg
• Stock Colour - Yellow , Other color can be customized.
• Cold-rolled Stainless Steel Shelf, powder coated white
• Acoustic Insulation - 50mm Tissue faced non hygroscopic Rockwool (RW3) density 60kg/m3
• Insulation Liner - White Perforated Polypropylene 3mm thickness
• Apparatus plate - Cold-rolled Stainless Steel, 2mm thickness, powder coated white
• Mounting Brackets -Cold-rolled Stainless Steel, 6mm thickness

Main Features

Noise reduction:
For external or internal use, the RF-25-B is designed to achieve a high level of noise reduction up to 18~23dB. The RF-25-B is manufactured to common fire specifications for resin materials, making it very strong and weatherproof. Inside the hood's outer shell is a perforated polypropylene lining that houses a non-hygroscopic soundproofing material.
Mounted to the inner rear wall is a metal plate; below this plate is a removable GRP shelf for easy cable insertion. 4 layers of different sound insulation cotton and other materials, so that your sound insulation effect is very good, so that you have no noise interference when talking.

Technical Parameters

Applicatiion

Heavy Industries, Refi neries, Airport, Oil&Gas plants, Factories, Chemical plants, Bulk loading stations, Mines, Drilling rigs, Steel mills, Off shore platforms, Any high noise industrial location and more.
