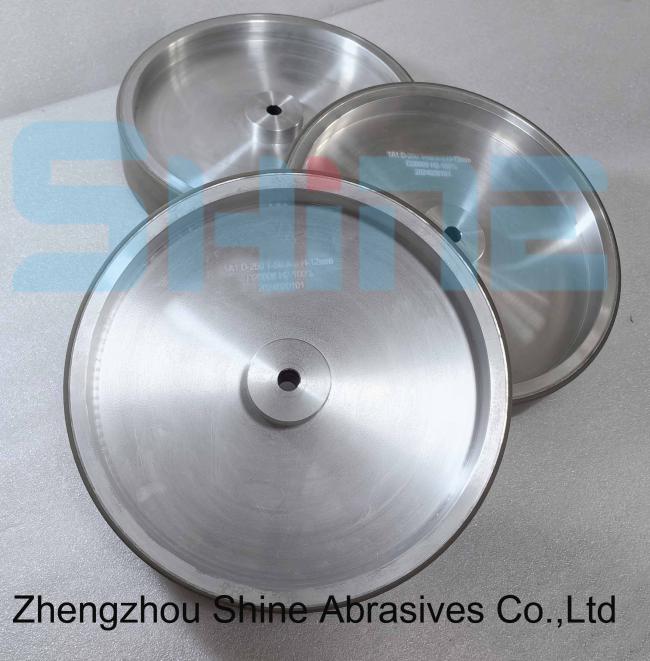

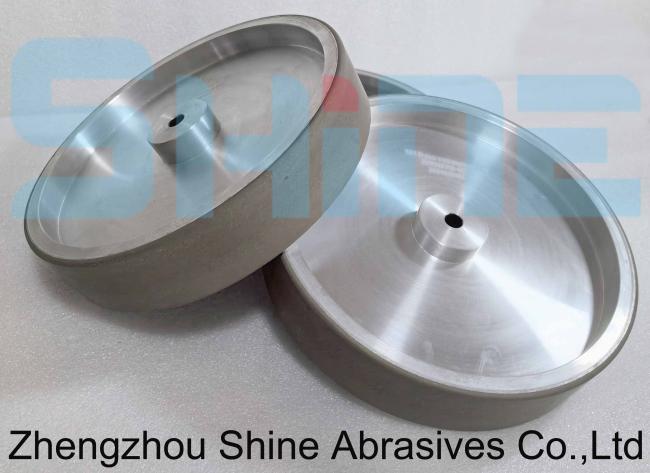

5x12mm Resin Bond Diamond Grinding Wheel For Woodworking Circular Saw Blade Grinding
Resin Bond Diamond Grinding Wheel for Woodworking Circular Saw Blade Grinding
Resin Bond Diamond/CBN tools are featured with free-faster cutting, non-truing and dressing, less heating due to the diamond particles protruding from the surface.CBN plated wheels are usually a single layer of CBN grains highly concentrated, and held on by a tough, durable nickel alloy. This high concentration enables plated products to retain their original shape and dimensions throughout its working life.
|
Shape
|
D(mm)
|
T(mm)
|
H(mm)
|
X(mm)
|
W(mm)
|
|
Common |
100
|
25-40
|
16, 20, 31.75, 32
|
2-6
|
3-10
|
|
125
|
25-40
|
16, 20, 31.75, 32
|
2-6
|
3-10
|
|
|
150
|
25-40
|
16, 20, 31.75, 32
|
2-6
|
3-10
|
|
|
Wheel Shape
|
4A2, 12A2, 4BT9, 12V2, 11V2, 12V2, 6A2, 14A1, 12V9, 3V1, 11A2
|
||||
|
Any nonstandard size and grits size can customised (tell us size or drawing is enough.
|
|||||
Diamond grinding wheel is mainly used for cylindrical grinding and cutting edge processing of cemented carbide suitable for grinding metal and non-metal hard and brittle materials with low iron content,such as cemented carbide,high alumina porcelain, optical glass, agate gemstone, semiconductor material, ceramics, stone, etc.
