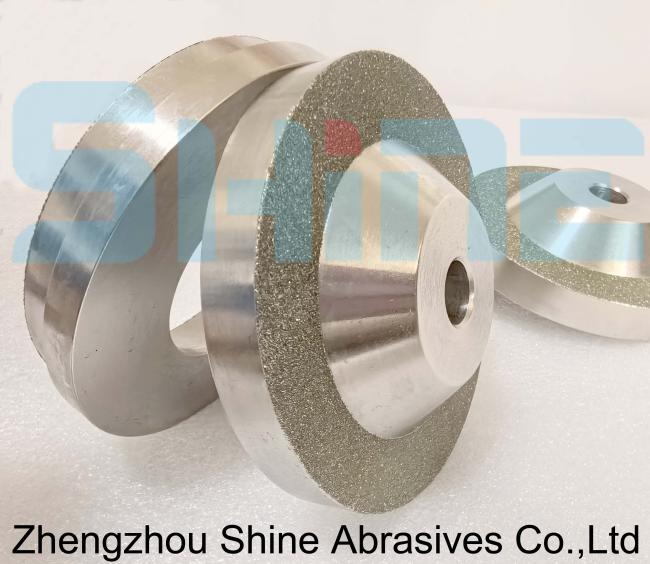

ODM Electroplated Diamond & CBN Precision Profile Grinding Wheels
ODM Electroplated Diamond & CBN Precision Profile Grinding Wheels
Electroplated wheels are noted for relatively large grit protrusion and higher abrasive concentration. This results in very free cutting properties and in high stock removal capacity.
Besides, these tools are noted for:
1. Allow special shapes and profile tools to be made at short notice.
2. Cause very little change on wheel shape after used, suitable for precision grinding.
|
Name
|
Electroplated grinding wheel
|
|
Grinding method
|
Dry or Wet grinding
|
|
Diameter
|
100mm,120mm ,160mm,200mm,250mm,300mm,customized
|
|
Arbor hole
|
Arbor hole 16mm,17mm,22mm 32mm or customized
|
|
Grit size
|
80# 120# 150# 200# 240# 280# 320# 350# 380# 400# 450# 500# 600# 800#,customized
|
|
Model
|
1A1,1A1R,1V1 ,6A2,12A2,11A2,11V9,etc
|
Electroplated bonding gives high grinding or cutting speed, procise dimensions, made to customer order or special requirements
Double grits can be made on one wheel but used as 2 steps.
All type we can make against drawings, samples and new designations on client requirements.
