ODM 127MM CBN Band Saw Sharpening Wheel To Grind Wood Mizer Bandsaw
ODM 127MM CBN Band Saw Sharpening Wheel to Grind Wood Mizer Bandsaw

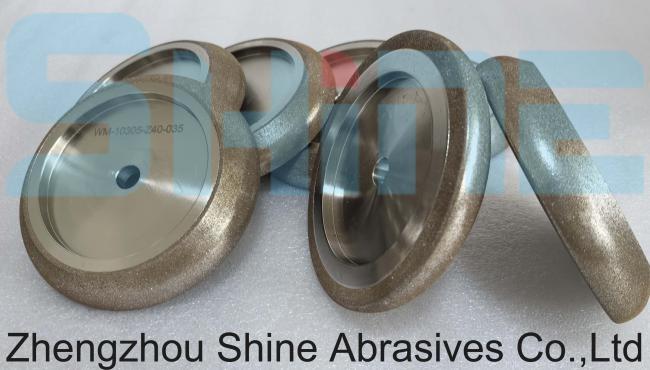

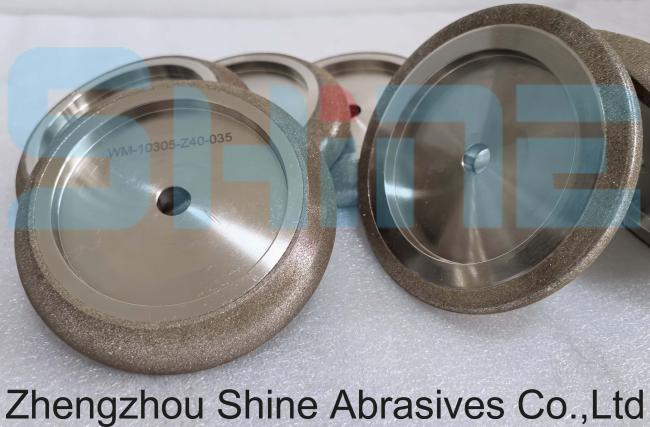

Electroplated CBN Grinding Wheels are used for bandsaw sharpening. Electroplated cbn band saw sharpening wheel achieves superior performance, gives high quality finish. They are produced with steel core and electroplated (nickel bonded) rim. Lasts very long. Reduces band saw breaking. No need no profile, no dust. These wheels are perfect choice to grind band saws.
| Electroplated cbn grinding wheel for sharpening band saw blades | |||
| Diamond/CBN grinding wheel base | Alumium,steel or as your requirements | ||
| Popular Specification | 5"x7/8"x1/2" | 6"x7/8"x1/2" | 8"x7/8"x1-1/4" |
| 127x22.23x12.7mm | 150x22.23x12.7mm | 127x22.23x12.7mm | |
| Grit:B126,B151 | Grit: B126,B151 | Grit: B126,B151 | |
| Suitable Grinders & Sharpenars | Wood-Mizer | Vollmer | Westron |
| Loroch | Timbery | Norwood | |
| Timber Wolf | |||
| Suitable Band Saw Blades Profile | 10/30, 9/29, 4/32, 13/29, 7/34 | ||
| Suitable Products | Band saw | Band saw blades | Band saw mill |
| Delivery time | 5-7 days. Large quantity please contact us to discuss | ||
| Applications | Mainly used for grinding&cutting hard and brittle alloy,non-metal materials.Such as hard alloy, ceramics, agate, optical glass, semiconductor materials and wear-resistant cast iron, stone, spring steel, tool steel, bearing steel, etc. | ||
| Logo | Acceptable, can be lettering according to the customers' requirements. | ||
Advantages:
1)electroplated process is simple, less investment, convenient manufacture;
2)No need to trim, easy to use;
3)monolayer structure determines the it can achieve very high working speed,
4)although only a monolayer diamond, but there is still enough life time;
5)for the high precision request rolling wheel, electroplated is the only manufacture method.
