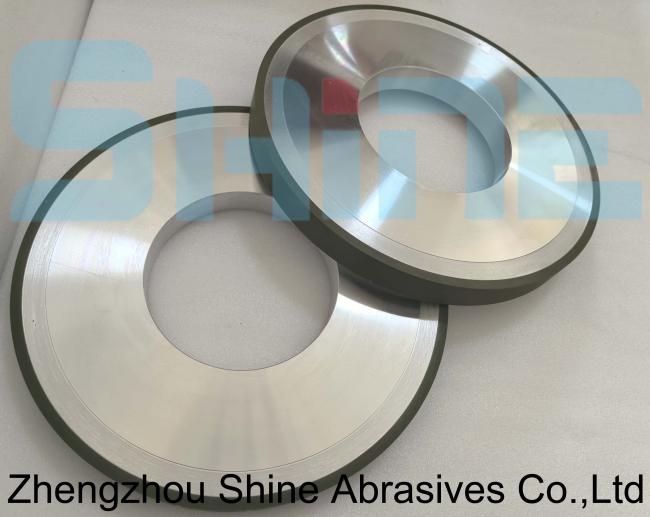

ODM 300mm 1A1 Resin Bond Diamond Carbide Grinding Wheel For Steel
ODM 300mm 1A1 Resin Bond Diamond Carbide Grinding Wheel for Steel
Shine Abrasives 1A1 resin bond diamond wheel have a certain degree of elasticity and can automatically dress the surface of the grinding wheel during the grinding process, maintaining the sharpness of the abrasive particles.1A1 resin bond diamond wheel have excellent heat dissipation properties, which can effectively reduce heat accumulation during grinding and minimize thermal damage to workpieces.
| Type | 1A1 Flat resin bond diamond grinding wheel |
| Concentration | 50%,75%,125%,150% |
| Mesh |
46#,60#,80#,100#,120#(coarse grinding); 120#,150#,180#,200#,240#(medium grinding);
280#,320#,400#,500#,600#(fine grinding);
800#,1000#,1200#,1500#,2000#,3000#(polishing)
|
| Specification |
D75-H10-T5-X10 D150-H19-X5-T5 D125-T10-X10-H20/31.75 D100-T10-X10-H20/31.75
D175-H127-X4-T5 D250-H40-X10-T3
D300-H127-X10-T40 D350-H127-T20-X10
D400-H127-T40-X10 D500-H203-X10-T32
Specification sizes can be customized
|
| Application | ard alloy,high alumina porcelain,optical glass agate gemstone, semiconductor material,ceramics,stone,etc |
The advantages of 1A1 resin diamond grinding wheel are mainly reflected in the following aspects:
1. ** Diversified applications**
-Widely applicable: Suitable for processing various hard and brittle materials such as hard alloys, ceramics, glass, semiconductor materials, stone, magnetic materials, etc.
-Multifunctional: Can be used for various processing techniques such as cutting, grinding, polishing, etc.
2. ** Economic viability**
-High cost-effectiveness: Although the initial cost is high, the overall usage cost is low due to its long lifespan and high efficiency.
