60D 1A1 Flat Metal Grinding Wheel Hybrid for Carbide Glass Ceramics
Price:
FOB
MOQ:
2 pcs
Delivery Time:
5 work days
Brand:
Shine Abrasives
Product Description

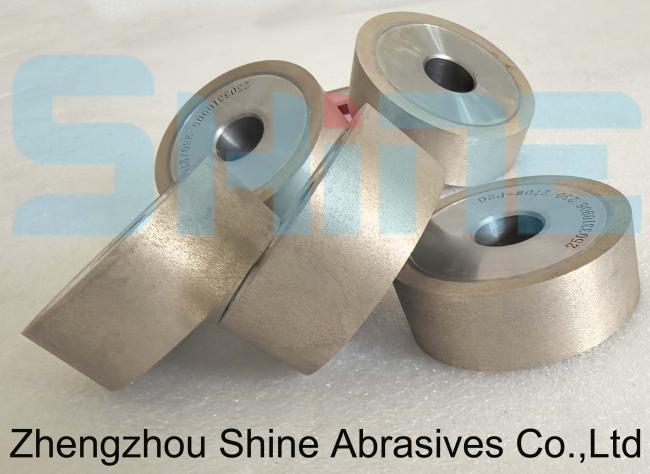

60D 1A1 Flat Metal Grinding Wheel Hybrid for Carbide Glass Ceramics
Shine Abrasives 60D 1A1 flat metal bond and resin bond enables highly efficient and high grade grinding of material that are difficult to grind. Hybrid bonding technology combines the wear resistance of metal bonds with the porosity of resin bonds. The porous structure of the abrasive yields improved diamond/CBN exposure.
| Type | 1A1 Flat metal bond diamond grinding wheel |
| Concentration | 50%,75%,125%,150% |
| Mesh |
46#,60#,80#,100#,120#(coarse grinding); 120#,150#,180#,200#,240#(medium grinding);
280#,320#,400#,500#,600#(fine grinding);
800#,1000#,1200#,1500#,2000#,3000#(polishing)
|
| Specification |
D75-H10-T5-X10 D150-H19-X5-T5 D125-T10-X10-H20/31.75 D100-T10-X10-H20/31.75
D175-H127-X4-T5 D250-H40-X10-T3
D300-H127-X10-T40 D350-H127-T20-X10
D400-H127-T40-X10 D500-H203-X10-T32
Specification sizes can be customized
|
| Application | ard alloy,high alumina porcelain,optical glass agate gemstone, semiconductor material,ceramics,stone,etc |
1. Resin (polyimide) bond. Good grinding performance and surface roughness, elasticity, minimal chipping
2. Metal bond. High wear resistance and high thermal stability, excellent grinding ability and long tool life
3. Dressing interval: more than double
4. Tool life: more than 1.5 times
