1A1 Resin Bond Diamond Wheel for Tungsten Carbide Tools OD Grinding
1A1 Resin Bond Diamond Wheel for Tungsten Carbide Tools OD Grinding

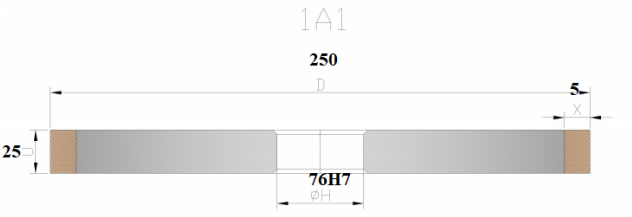

Shine Abrasives 1A1 250mm resin bond diamond wheel is specifically designed for the outer diameter (OD) grinding of tungsten carbide tools. This type of wheel is optimized for precision grinding and finishing of various tungsten carbide components, providing high efficiency and durability.The 1A1 shape is flat and disc-like, allowing for effective grinding of the outer diameter of tools, ensuring good contact and stability during the grinding process.
| Type | 1A1 Flat metal bond diamond grinding wheel |
| Concentration | 50%,75%,125%,150% |
| Mesh |
46#,60#,80#,100#,120#(coarse grinding); 120#,150#,180#,200#,240#(medium grinding);
280#,320#,400#,500#,600#(fine grinding);
800#,1000#,1200#,1500#,2000#,3000#(polishing)
|
| Specification |
D75-H10-T5-X10 D150-H19-X5-T5 D125-T10-X10-H20/31.75 D100-T10-X10-H20/31.75
D175-H127-X4-T5 D250-H40-X10-T3
D300-H127-X10-T40 D350-H127-T20-X10
D400-H127-T40-X10 D500-H203-X10-T32
Specification sizes can be customized
|
| Application | ard alloy,high alumina porcelain,optical glass agate gemstone, semiconductor material,ceramics,stone,etc |
The 250mm size provides a sufficient grinding surface, suitable for different grinding machines while allowing for efficient material removal.
The resin bond offers a balance of flexibility and strength, allowing the wheel to conform slightly to the workpiece surface, which helps reduce chipping and enhances overall performance.
