250mm 1A1 Flat Resin Bond CBN Diamond Grinding Wheel for Carbide
250mm 1A1 Flat Resin Bond CBN Diamond Grinding Wheel for Carbide

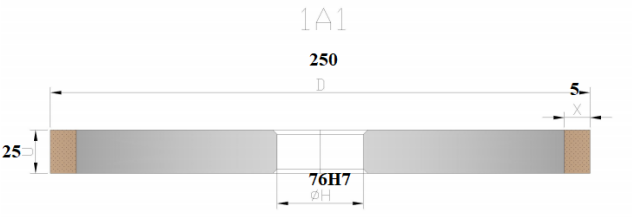

The 1A1 250mm resin bond diamond wheel is highly effective for OD grinding of tungsten carbide tools. Its combination of precise shape, durability, and efficiency makes it suitable for a wide range of grinding applications in industries that require high-performance tools. Proper use and maintenance of this wheel will further enhance its effectiveness and lifespan.
| Type | 1A1 Flat metal bond diamond grinding wheel |
| Concentration | 50%,75%,125%,150% |
| Mesh |
46#,60#,80#,100#,120#(coarse grinding); 120#,150#,180#,200#,240#(medium grinding);
280#,320#,400#,500#,600#(fine grinding);
800#,1000#,1200#,1500#,2000#,3000#(polishing)
|
| Specification |
D75-H10-T5-X10 D150-H19-X5-T5 D125-T10-X10-H20/31.75 D100-T10-X10-H20/31.75
D175-H127-X4-T5 D250-H40-X10-T3
D300-H127-X10-T40 D350-H127-T20-X10
D400-H127-T40-X10 D500-H203-X10-T32
Specification sizes can be customized
|
| Application | ard alloy,high alumina porcelain,optical glass agate gemstone, semiconductor material,ceramics,stone,etc |
The flexibility of the resin bond minimizes the risk of chipping during the grinding process, preserving the integrity of the tool's edges.
The durability of the resin bond combined with diamond abrasives results in a longer lifespan of the wheel, reducing the need for frequent replacements.
