1A1 Resin Bond Diamond Wheels for Grinding and Polishing Hard Alloy
1A1 Resin Bond Diamond Wheels for Grinding and Polishing Hard Alloy
1A1 Resin Bond Diamond Wheels for Grinding and Polishing Hard Alloy are widely used in automotives, motorcycles, aerospace, refrigerator compressor, sewing machine components, hydraulics, bearings, semiconductors, solar energy and other industries. Customized honing stones, honing tools are available. Please provide the following information: Honing machine model: horizontal or vertical; Bore type: open through bore, blind, etc.

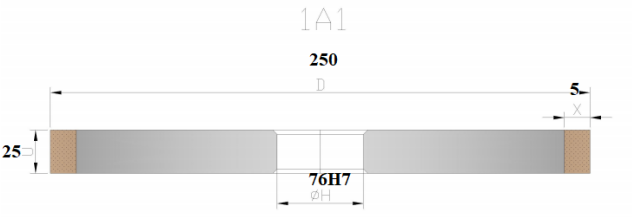

| Type | 1A1 Flat metal bond diamond grinding wheel |
| Concentration | 50%,75%,125%,150% |
| Mesh |
46#,60#,80#,100#,120#(coarse grinding); 120#,150#,180#,200#,240#(medium grinding);
280#,320#,400#,500#,600#(fine grinding);
800#,1000#,1200#,1500#,2000#,3000#(polishing)
|
| Specification |
D75-H10-T5-X10 D150-H19-X5-T5 D125-T10-X10-H20/31.75 D100-T10-X10-H20/31.75
D175-H127-X4-T5 D250-H40-X10-T3
D300-H127-X10-T40 D350-H127-T20-X10
D400-H127-T40-X10 D500-H203-X10-T32
Specification sizes can be customized
|
| Application | ard alloy,high alumina porcelain,optical glass agate gemstone, semiconductor material,ceramics,stone,etc |
*Grinding, PCD, PCBN, CVD, MCD, hard alloy and other cutting tools
*Bonding agents: ceramic bonding agents, resin bonding agents, metal bonding agents
*The particle size can reach up to 10000#
*Precision grinding: capable of achieving high accuracy and surface finish
*The bowl is mainly used for tool sharpening and surface milling, suitable for grinding metal and non-metal hard and brittle material with low iron content.
