The Hybrid-Bonded Heavy-Duty Diamond Grinding Wheel for precision grinding
The Hybrid-Bonded Heavy-Duty Diamond Grinding Wheel for precision grinding

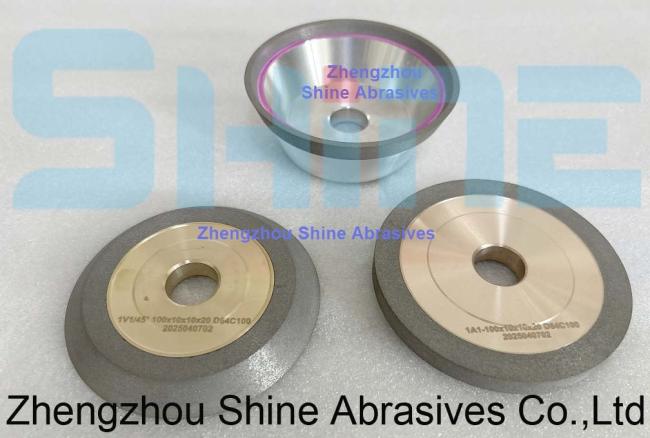

The Hybrid-Bonded Heavy-Duty Slotting Diamond Grinding Wheel is a super-hard abrasive tool specifically designed for the precision grinding of difficult-to-machine materials, such as cemented carbide and high-speed steel. By innovatively fusing the distinct characteristics of both resin and metal bonding agents, this grinding wheel overcomes the technical bottleneck—common in traditional single-bond wheels—of balancing "sharpness" with "durability." It is particularly well-suited for the heavy-duty grinding of helical or straight flutes on solid-shank cutting tools (such as end mills, drill bits, and reamers).
Technical Parameters:
| Parameter | Detail |
|---|---|
| Package | Carton Box |
| Shape | Cup, Straight, Cylindrical, Etc. |
| Warranty | 1 Year |
| Material | Carbon Steel |
| Max Pressure | 5MPa |
| Bond | Vitrified, Resin, Metal, Etc. |
| Application | CNC Grinding, Flute Grinding, Gash Grinding, Relief Angle Grinding |
| Max Temperature | 150℃ |
| Size | 4-12 Inch |
| Max Speed | 100 m/s |
**Tool Types:** Solid carbide end mills, drill bits, reamers, taps, and similar tools.
**Processing Operations:** Cutting helical or straight flutes, back-off grinding, edge clearing, and fine grinding of cutting edges.
**Compatible Equipment:** Widely compatible with leading international 5-axis CNC tool grinders, including those from Anca, Walter, Ewag, and Schneeberger.
