SGS Hydraulic Injection Moulding Machine Plastic Box Making High Response Motor
OUCO Plastic Box Making Machine With High Response Motor and Full Hydraulic Drive
OUCO plastic machine is fully hydraulic driven and adopts the world class Speed control program, which improves the repeat positioning accuracy of the injection molding machine to 0.1mm and controls the injection accuracy to 0.1mm.
There are no major restrictions on the materials that can be used for 220GB, such as PE, PP, PS, ABS, PVC, PA, PET, PC, PPO
Product Advantages
We select the most suitable parts
- Korea LS Three-phase circuit breakersingle-pole circuit breakerThree-pole circuit breaker adopt
- Taiwan FOTEK Solid relaysfast fuse breaker therom rolay -French Schineider gefran Contactorihermo-relaystroke switch -Italy Gefran Linear transducer
- Korea Autonics Proximity switchphotosensor
- Taiwan MW Switching power
Parameters
| MODEL | CWI-220GB | |||||
| CLAMPING UNIT | clamping force (kN) | 2200 | ||||
| Tie bar distance W×L (mm) | 570*570 | |||||
| Max.Daylight(mm) | 550 | |||||
| Max. mold thickness (mm) | 600 | |||||
| Min. mold thickness(mm) | 220 | |||||
| Platen Dimensions W×L (mm) | 830X830 | |||||
| Ejector Stroke(mm) | 170 | |||||
| Ejector Force(Kn) | 80 | |||||
| Ejector Quantily | 9 | |||||
| Injection unit | 860D | 1100D | ||||
| Injection Unit | Screw Diameter(mm) | 45 | 50 | 50 | 55 | |
| Screw L/D ratio | 23.3 | 21 | 23.1 | 21 | ||
| Theoretical injection volume (cm3) | 358 | 442 | 487 | 589 | ||
| Shot Weight (PS) g | 329 | 406 | 448 | 542 | ||
| Injection Pressure(MPa) | 256 | 207 | 225 | 186 | ||
| Injection Speed (mm/s) | 126 | 101 | ||||
| Injection Rate (cm3/s) | 200 | 247 | 198 | 240 | ||
| Screw Speed (rpm) | 245 | 185 | ||||
| Other | Motor Power (Kw) | 34 | ||||
| pump capacity(L/min) | 176 | |||||
| Heater Power (Kw) | 13..3 | 15.9 | ||||
| Machine Weight (kg) | 7.5 | |||||
| Machine size L×W×H (mm) | 5830x1640x1870 | |||||

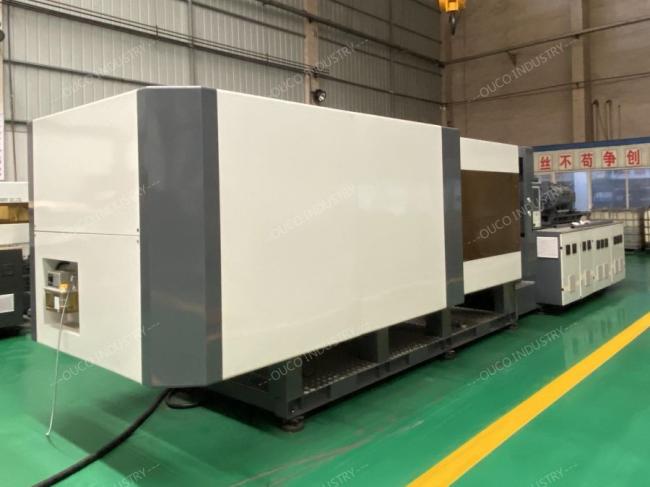

Detail Pictures
