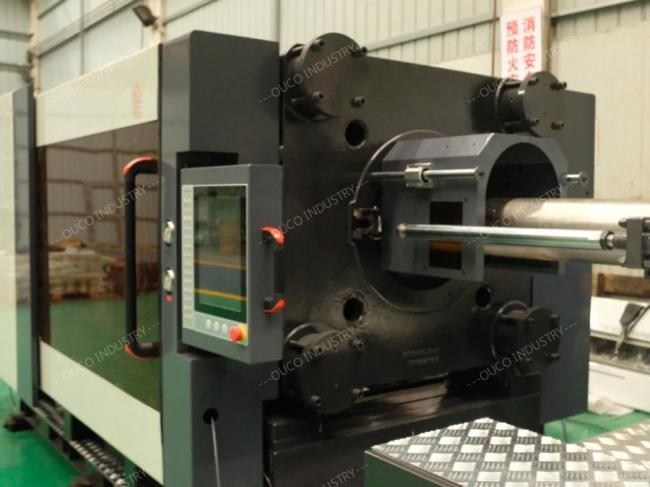

SGS Small Semi Automatic Injection Moulding Machine With Long Opening Stroke

Price Negotiable

Price: Negotiable

MOQ: 1

Delivery Time: 2 months

Brand: OUCO

Product Description

Semi-automatic Small Injection Molding Machine with Long Opening Stroke

Product Advantages

Two-platen clamping structure makes the floor space occupation less and mold opeining stroke longer.

Short mold closing distance, well rigidity,less platen deformation.

convenient and accurate setup of mold closing force protects the mold adn prolongs the mold life.

One clamping unit can be matched with several types of injection unit and screw to suit different molding requiremnets.

Double-cylinder balanceable injection structure.

Double-cylinder balanceable whole advancing and retreating injection unit, matching with the linear railway makes it less deformation and smooth movement.

Parameters

MODEL		CWI-350GB
CLAMPING UNIT	clamping force (kN)	3500
	Tie bar distance W×L (mm)	710x710
	Max.Daylight(mm)	680
	Max. mold thickness (mm)	720
	Min. mold thickness(mm)	260
	Platen Dimensions W×L (mm)	1020x1020
	Ejector Stroke(mm)	200
	Ejector Force(Kn)	80
	Ejector Quantily	13
	Injection unit	1700D			2800D
Injection Unit	Screw Diameter(mm)	60	65	70	70	75	80
	Screw L/D ratio	22.8	21	19.5	22.3	21	19.8
	Theoretical injection volume (cm3)	820	962	1115	1385	1590	1809
	Shot Weight (PS) g	754	885	1026	1274	1462	1664
	Injection Pressure(MPa)	215	183	158	204	178	156
	Injection Speed (mm/s)	121			95
	Injection Rate (cm3/s)	341	400	464	365	419	477
	Screw Speed (rpm)	200			160
Other	Motor Power (Kw)	48
	pump capacity(L/min)	275
	Heater Power (Kw)	22.4			30.2
	Machine Weight (kg)	13
	Machine size L×W×H (mm)	6750x1920x2350
