High Speed Injection Molding Machine With Easy Maintenance And No Oil Leakage CWI-150GF
Price:
Negotiable
MOQ:
1
Delivery Time:
2 months
Brand:
OUCO
Product Description
High Speed Injection Molding Machine With Easy Maintenance And No Oil Leakage CWI-150GF
Product Advantages
Variable pump control technology provides more power savings.
Self-closed suction oil filter is convenient for dismantling and maintenance.
Back oil filter can cleanse the hydraulic oil circularly so that prolonging the life.
Reliable oil seal technology eliminates oil leaking and makes the maintenance convenient.
Parameters
| MODEL | CWI-150GF | |||||
| CLAMPING UNIT | clamping force (kN) | 1500 | ||||
| Tie bar distance W×L (mm) | 470*470 | |||||
| Max.Daylight(mm) | 450 | |||||
| Max. mold thickness (mm) | 520 | |||||
| Min. mold thickness(mm) | 170 | |||||
| Platen Dimensions W×L (mm) | 680*680 | |||||
| Ejector Stroke(mm) | 140 | |||||
| Ejector Force(Kn) | 53 | |||||
| Ejector Quantily | 5 | |||||
| Injection unit | 310I | 420I | ||||
| Injection Unit | Screw Diameter(mm) | 32 | 35 | 35 | 40 | |
| Screw L/D ratio | 23 | 21 | 24 | 21 | ||
| Theoretical injection volume (cm3) | 117 | 140 | 163 | 214 | ||
| Shot Weight (PS) g | 108 | 129 | 150 | 196 | ||
| Injection Pressure(MPa) | 244 | 204 | 256 | 196 | ||
| Injection Speed (mm/s) | 239 | 191 | ||||
| Injection Rate (cm3/s) | 192 | 230 | 230 | 300 | ||
| Screw Speed (rpm) | 400 | 400 | ||||
| Other | Motor Power (Kw) | 34 | ||||
| pump capacity(L/min) | 176 | |||||
| Heater Power (Kw) | 7.11 | 8.91 | ||||
| Machine Weight (kg) | 5.2 | |||||
| Machine size L×W×H (mm) | 5095x1500x1745 | |||||

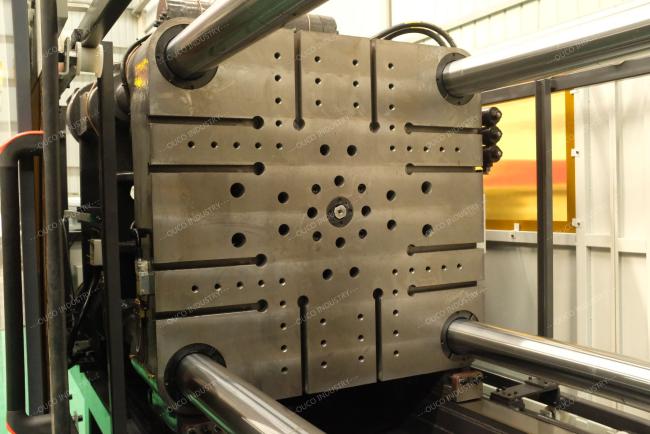

Detail Pictures
