520 T Hybrid Servo Motor Injection Molding Machine Ultra High Rigidity Square Plate
520 T Servo Hybrid Injection Molding Machine With Ultra-High Rigidity Square Plate + Tie Bar Structure Design
Product details
The series hybrid injection molding machine is based on all-electric injection molding machine (injection rate: 500mm/s) and high-speed machine . It combines with the clamping parts of the high-speed machine and the injection parts of the all-electric machine, taking into account the need for energy saving and environmental protection. It meets the requirements of this product for large clamping force and high performance injection unit. (Mold opening and filling are performed simultaneously.
Product Description:
1. Modular injection unit with excellent acceleration performance
2. High-speed machine tool high stiffness clamping unit.
3. High response and low noise hydraulic system.
4. Optimized control system with good response and accuracy for hybrid motors
The above translation results are from Youdao Neural Network Translation (YNMT) - General Domain
Sentence-by-sentence comparison
Technical Parameter
| OUCO-520T | ||||||||||
| Clamping Unit | ||||||||||
| Clamping force | kN | 5200 | ||||||||
| Moving mould-plate stroke | mm | 780 | ||||||||
| Max.Mould height | mm | 800 | ||||||||
| Min.Mould height | mm | 320 | ||||||||
| Space between tie-bars | mm | 820x770 | ||||||||
| Hydraulic ejector force | kN | 197 | ||||||||
| Hydraulic ejector stroke | mm | 200 | ||||||||
| Ejector number | n | 13 | ||||||||
| Injection Unit | i1400 | i1600 | I2300 | |||||||
| Screw diameter | mm | 55 | 60 | 60 | 60 | 65 | 70 | 65 | 70 | 75 |
| Screw LD ratio | LD | 21.8 | 20 | 20 | 21.6 | 20 | 20 | 21.5 | 20 | 20 |
| lnjection capacity in theory | Cm³ | 665 | 791 | 929 | 791 | 929 | 1078 | 1128 | 1308 | 1502 |
| Injection weight(PS) | g | 605 | 720 | 845 | 720 | 845 | 980 | 1027 | 1191 | 1367 |
| Injection pressure | bar | 2142 | 1800 | 1534 | 2113 | 1800 | 1552 | 2088 | 1800 | 1568 |
| Injection velocity | mm/s | 350 | 350 | 350 | ||||||
| Plasticizing capacity | g/s | 60 | 75 | 90 | 75 | 90 | 105 | 90 | 105 | 120 |
| Screw speed | rpm | 400 | 400 | 400 | ||||||
| Other | ||||||||||
| Pump pressure | MPa | 17.5 | ||||||||
| Motor/Driving power | kW | 45(注)+23(熔)+23+23(油) | 445(注)+23(熔)+23+23(油) | 45(注)+23(熔)+23+23(油) | ||||||
| Heating capacity | kW | 28 | 28 | 28 | ||||||
| Machine dimension | m | 8.13x2.09x2.32 | 8.23x2.00x2.06 | 8.48x2.00x2.15 | ||||||
| Machine weight | t | 17.5 | 22.3 | 23 | ||||||
| oil tank capacity | L | 650 | ||||||||

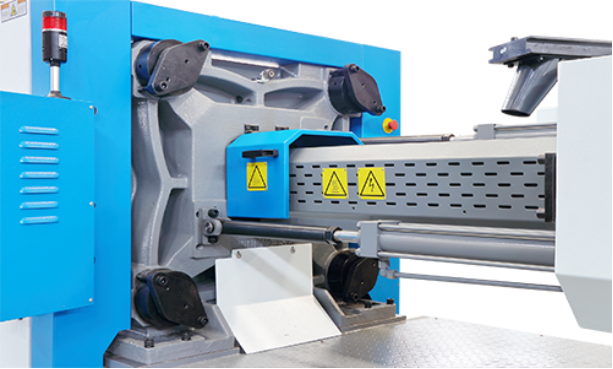

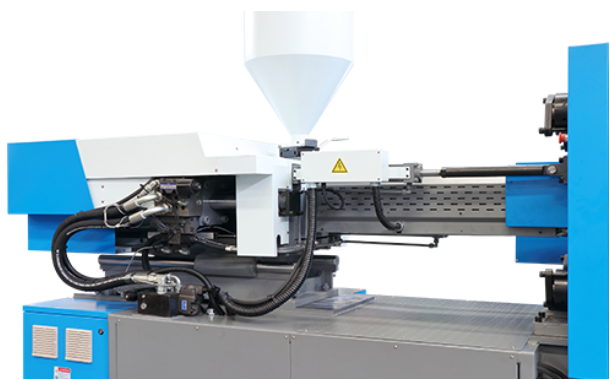

Detail Pictures
