530 T Hydraulic Injection Moulding Machine SGS Small Injection Molding Machine

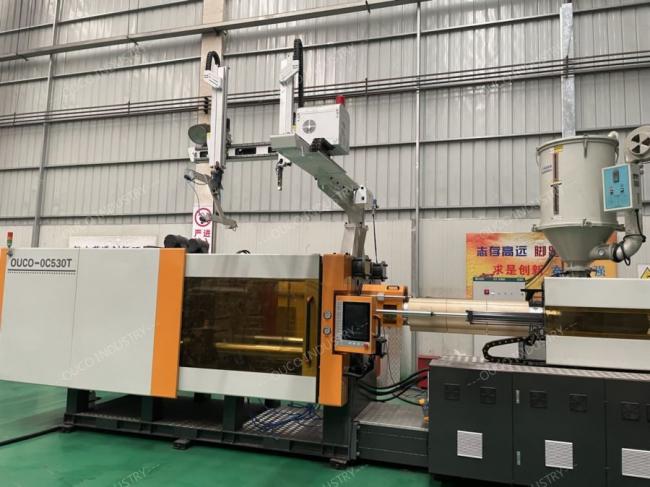

530 T Advanced Small Scale Injection Molding Machine With Robot Arm
Optimized functions

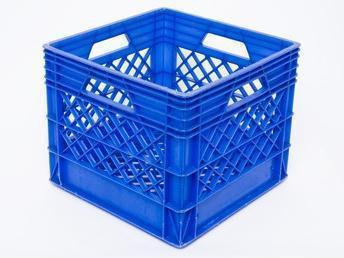

1.Expanded motor and pump system, optimized hydraulic system for high performance and faster cycles. Like crate (less than 2kg) cycle time 20s;
Spray paint bucket (780-800g) cycle time 20s.
2. Specially designed screw and barrel structure for faster plasticization and shorter loading cycle.
Optional bimetallic screw and barrel to be compatible with the recycled material of the box.
3. Optional automation equipment is available to improve production efficiency.
The above translation results are from Youdao Neural Network Translation (YNMT) - General Domain
Sentence-by-sentence comparison
Product Parameters
| TECHNICAL PARAMETER TABLE | |||
| INJECTION UNIT | SCREW DIAMETER | mm | 100 |
| SCREW L/D RATIO | L/D | 19 | |
| INJECTION CAPACITY IN THEORY | cm3 | 3298 | |
| INJECTION WEIGHT(PS) | g | 3000 | |
| INJECTION PRESSURE | MPa | 134 | |
| INJECTION RATE | g/s | 663 | |
| PLASTICIZING CAPACITY | g/s | 100 | |
| SCREW SPEED | rpm | 137 | |
| CLAMPING UNIT | CLAMPING FORCE | KN | 5300 |
| MOVING MOULD-PLATE STROKE | mm | 830 | |
| MAX. MOULD HEIGHT | mm | 990 | |
| MIN. MOULD HEIGHT | mm | 330 | |
| SPACE BWTWEEN TIE-BARS (W×H) | mm | 880x810 | |
| HYDRAULIC EJECTOR FORCE | mm | 181 | |
| HYDRAULIC EJECTOR STROKE | KN | 230 | |
| EJECTOR NUMBER | n | 17 | |
| OTHERS | PUMP PRESSURE | MPa | 16 |
| MOTOR /DRIVING POWER | KW | 55 | |
| HEATING CAPACITY | KW | 30 | |
| MACHINE DIMENSION (L×W×H) | m | 8.5*2.14*2.43 | |
| MACHINE WEIGHT | t | 20.5 | |
| OIL TANK CAPACITY | L | 1150 | |
