41kW Hydraulic Injection Molding Machine With Huge Volumetric Modulus 151mm / S
Price:
Negotiable
MOQ:
1
Delivery Time:
2 months
Brand:
OUCO
Product Description
500 T High-Power Hydraulic Injection Molding Machine With Huge Volumetric Modulus
The hydraulic high-speed injection molding machine designed and produced by OUCO has a considerable capacity of moduli space and an ultra long opening stroke. Compared with the same model, the opening stroke of OUCO injection molding machine is about 20% longer, which can accommodate larger molds and produce more products.
Based on this design, the same machine can produce multiple models of products, making it more economical. In addition, the price advantage of the Eurosuper injection molding machine itself can save customers a lot of costs.
Parameters
| Model | 530T | |||
| Screw Specifications | C | |||
| Screwdi ameter | mm | 100 | ||
| Screw L/Dratio | 22 | |||
| Theoretical injection volume | cm3 | 3500 | ||
| Shot weight (PS) | g | 3390 | ||
| injection rate(Ps) | g/S | 1145 | ||
| Injection pressure | MPa | 113 | ||
| Inject on stroke | mm | 450 | ||
| Max. injection speed | mm/s | 151 | ||
| Screw speed | r/min | 0-200 | ||
| Sys. Pressure | MPa | 16 | ||
| Pump Motor(Min-Max) | kW | 95 | ||
| Displacement | ml/r | 125+125 | ||
| number of Motors | PC | 2 | ||
| Heater power | kW | 41 | ||
| Number oftemp. control zones | 5+1 | |||
| Clamping force | kN | 5000 | ||
| Opening stroke | mm | 1000 | ||
| Tie bar distance W×L | mm*mm | 860x760 | ||
| Min. mold thickness | mm | 300 | ||
| Max. mold thickness | mm | 800 | ||
| Ejector stroke | mm | 210 | ||
| Ejector force forward | kN | 110 | ||
| Number of ejector bar | PC | 1+12 | ||
| Oil tank capacity | L | 850 | ||
| Machine dimensions(LxWxH) | m*m*m | 87x2.0x2.1 | ||
| Machine weight | Ton | 19 | ||

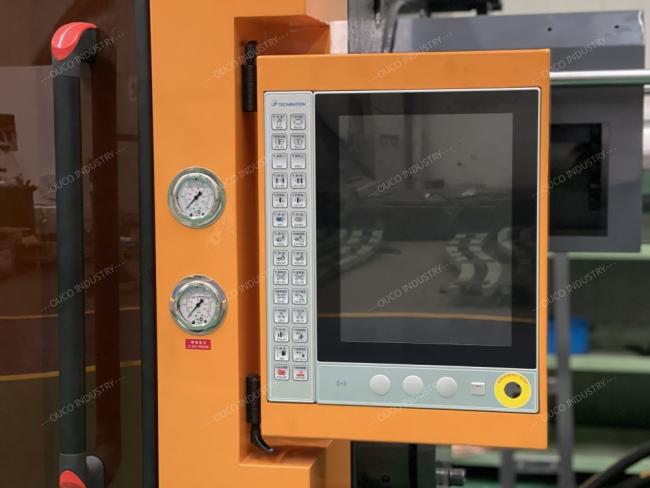

Detail Pictures
