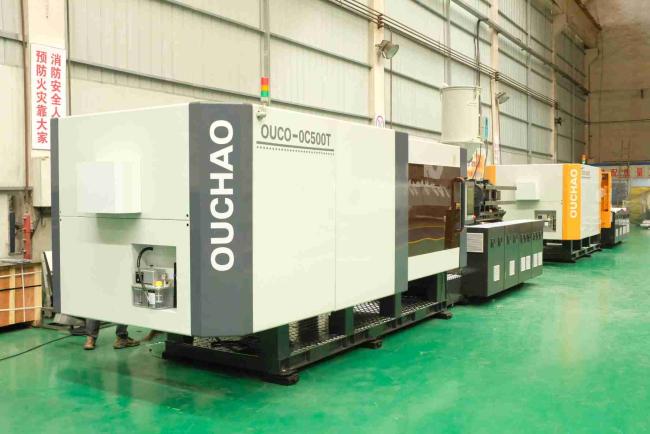

High Efficiency Hydraulic Injection Molding Machine High Rigidity Mold Plate 530 T 100mm
Price:
Negotiable
MOQ:
1
Delivery Time:
2 months
Brand:
OUCO
Product Description
530 T High Efficiency Hrdraulic Injection Molding Machine Uses High Rigidity Mold Plate
Product Details

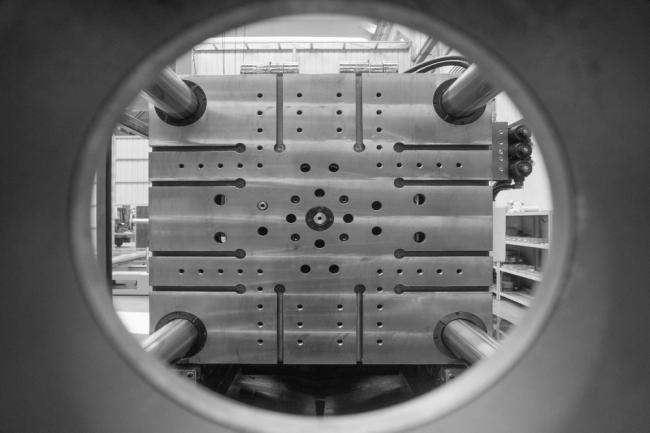

1. The mold plate has strong rigidity and smooth operation;
2. Effectively protect the Corinthian pillars and molds;
3. The mold plate is not easily worn and durable, reducing maintenance costs;
4.Can meet production needs under high intensity and high load conditions;
TECHNICAL PARAMETER
| TECHNICAL PARAMETER TABLE | ||
| Injection Unit | ||
| Screw diameter | mm | 100 |
| Screw L/D ratio | L/D | 22 |
| Injection capacity in theory | cm³ | 3342 |
| Injection weight | g | 3233 |
| Injection pressure | MPa | 113 |
| Injection rate | g/s | 1145 |
| Screw speed | rpm | 150 |
| Clamping Unit | ||
| Clamping force | KN | 5300 |
| Moving mould-plate stroke | mm | 1000 |
| Max.Mould height | mm | 830 |
| Min.Mould height | mm | 350 |
| Space between tie-bars | mm | 860x800 |
| Hydraulic ejector force | KN | 103 |
| Hydraulic ejector stroke | mm | 210 |
| Ejector number | n | 13 |
| Other | ||
| Pump pressure | MPa | 16 |
| Motor/Driving power | KW | 47.5x2 |
| Heating capacity | KW | 41 |
| Machine dimension | m | 8.7x2.0x2.1 |
| Machine weight | t | 19 |
| Oil tank capacity | L | 850 |
