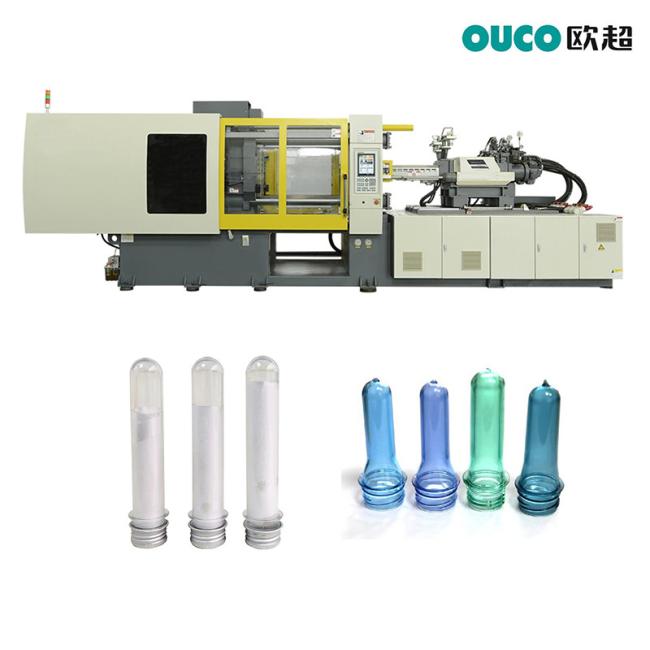

Plastic PET Injection Molding Machine 1200kN Small Precision Automation 48mm
Small Precision Plastic Molding Machine Specifically Designed For Injection Molding Of PET Materials
OUCO has designed a specialized plasticizing system based on the characteristics of PET molding, equipped with dedicated PET screws to increase the aspect ratio of the screws, fully meeting the high requirements for PET transparency and plasticizing quality. The ejection force is large and the ejection stroke is sufficient.
OUCO's PET dedicated machine has all the advantages of a standard model and has made mature improvements based on the characteristics of PET molding, ensuring excellent PET product molding.
Product Description
1. Large diameter screw design with large aspect ratio.
2. Strong plasticizing ability.
3. Increase the mold opening stroke, increase the volumetric modulus, and extend the ejector pin stroke, resulting in a large space for the four pillars.
4. Special PET tube sets can be customized.
5. More than four sections of material barrel PID temperature precise control.
Product Parameters
|
DESCRIPTION
|
UNIT
|
DATA
|
|
|
Injection unit
|
Shot volume
|
cm3
|
307.6
|
|
Shot weight (PS)
|
g
|
359.8
|
|
|
oz
|
12.6
|
||
|
Screw diameter
|
mm
|
48
|
|
|
Injection pressure
|
Mpa
|
136.7
|
|
|
Screw L:D ratio
|
|
24:1
|
|
|
Max. injection speed
|
mm/s
|
96
|
|
|
Plasticizing Capacity (PET)
|
g/s
|
37
|
|
|
Screw stroke
|
mm
|
170
|
|
|
Screw speed(stepless)
|
r/min
|
0-181
|
|
|
Clamping unit
|
Clamping force
|
kN
|
1200
|
|
Opening stroke
|
mm
|
360
|
|
|
Space between bars
|
mm*mm
|
410x370
|
|
|
Max. Daylight
|
mm
|
760
|
|
|
Mold thickness(Min.Max)
|
mm
|
145-400
|
|
|
Ejector stroke
|
mm
|
120
|
|
|
Ejector number
|
|
5
|
|
|
Ejector force
|
kN
|
42
|
|
|
Power unit
|
Hydraulic system pressure
|
Mpa
|
17.5
|
|
Pump Motor
|
kw
|
15
|
|
|
Heating capacity
|
kw
|
11.2
|
|
|
Number of temp control zones
|
|
5
|
|
|
General unit
|
Oil tank capacity
|
L
|
195
|
|
Machine dimensions(LxWxH)
|
m*m*m
|
4.95x1.23x1.62
|
|
|
Machine weight
|
kg
|
3600
|
Detail Pictures
