650T Yellow High Performance High Output Plastic Injection Molding Machine For Bucket Hydraulic Servo

Price Negotiable
Price: Negotiable
MOQ: 1
Delivery Time: 2 months
Brand: OUCO
Product Description

480T Yellow High Performance High Output Plastic Injection Molding Machine for Bucket Hydraulic Servo

OUCO hydraulic injection molding machines are famous for its performance,quality and efficiency.Compared with the traditional, we adopt the servo hydraulic system, which provides a stable working environment for the operation of the machine and forms a better working performance. At the same time, the adoption of advanced technology, to a certain extent, also provides a guarantee for creating high-quality products. The structure of the centre clamping mould greatly reduces the waste of materials and saves electricity, material and financial resources, thus improving the efficiency of the products and providing customers with the best quality and most satisfactory products and services.

Product Advantages

We offer customisable drum making machine and advanced PVC drum making machine technology to meet the diversified requirements of our clients. With our advanced PVC pail making machine technology, we produce products with superior performance and precision, ensuring that your production line stays ahead of the competition in the marketplace. With the increasing awareness of environmental protection, the demand for durable and high-quality plastic drums is also increasing, we provide you with high quality products and services, and use technology to improve your productivity, and then get the maximum benefit.

Parameters

                                                                 MODEL OCM-650D
Clamping force (kN) 650
Space between tie bar (mm*mm) 960*820
Max. mold thickness (mm) 1000
Min. mold thickness(mm) 450
Opening stroke (mm) 1150
Ejector stroke(mm) 260
Ejector force forward(Kn) 181
Screw diameter(mm) 100
Screw L/D ratio 22
Theoretical injection volume (cm3) 3730
Shot weight (PS) g 3602
Injection pressure(MPa) 137
Injection speed (mm/s) 93
Injection rate (g/s) 706
Motor power (Kw) 75
Oil tank capacity(L) 950
Heater power (Kw) 41
Machine Weight (kg) 24
Machine size L×W×H (mm) 9000*2100*2300

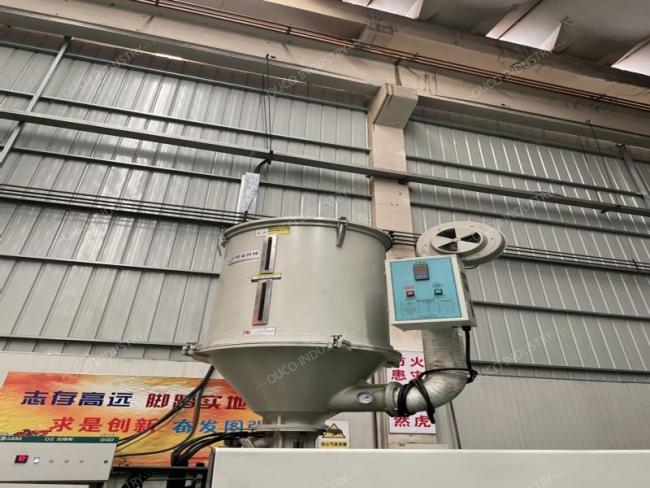

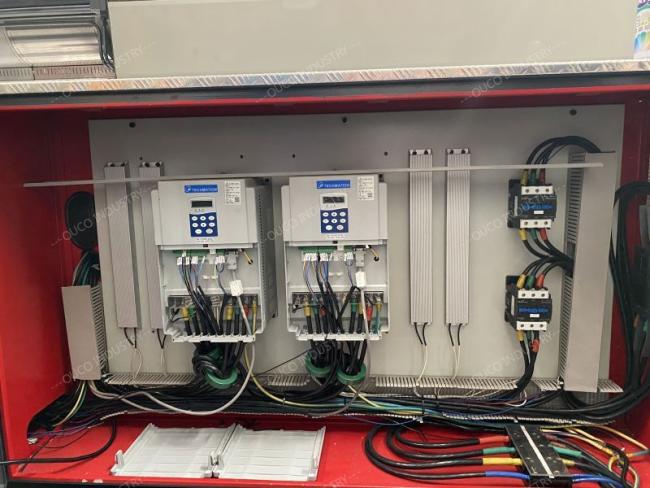

Detail Pictures
