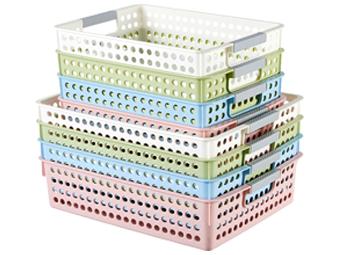

OUCO 220T Desktop Injection Molding Machine Energy Saving Hydraulic Servo For Plastic Small Storage Basket
OUCO 220T Energy Saving Hydraulic Servo Desktop Plastic Small Storage Basket Horizontal Injection Molding Machine
We are committed to continuous innovation and technological upgrading to quickly respond to market needs, adapt to the changing market and improve competitiveness. The factory is careful and meticulous in its production operations and every process has scientific and rigorous specifications and processes to ensure the accuracy of the assembly of the injection molding machines produced. As a reliable partner for our customers, we will continue to strive to provide efficient and reliable injection molding solutions to provide strong support for your production.
Product Advantages
OC-228H is equipped with 3 types of screws, with screw diameters of 45, 50, and 55 mm. The injection unit adopts linear guide design, high-precision and high-speed injection, energy-saving control and greatly improved response capability. The product produced reduces the possibility of flash and saves the work of flash trimming. We can configure the key parts of the injection molding machine according to your production needs. We can work together to realize more possibilities for production operations.
| MODEL | OC-220UV | |||||
| Clamping force (kN) | 2200 | |||||
| Space between tie bar (mm*mm) | 510*510 | |||||
| Max. mold thickness (mm) | 550 | |||||
| Min. mold thickness(mm) | 200 | |||||
| Opening stroke (mm) | 480 | |||||
| Ejector stroke(mm) | 150 | |||||
| Ejector force forward(Kn) | 67 | |||||
| Screw diameter(mm) | 55 | |||||
| Screw L/D ratio | 18 | |||||
| Theoretical injection volume (cm3) | 569 | |||||
| Shot weight (PS) g | 520 | |||||
| Injection pressure(MPa) | 145 | |||||
| Screw speed (rpm) | 0-200 | |||||
| Dry-cycle time (sec) | 4.5 | |||||
| Motor power (Kw) | 23 | |||||
| Oil tank capacity(L) | 310 | |||||
| Heater power (Kw) | 13.1 | |||||
| Machine Weight (Ton) | 6.3 | |||||
| Machine size L×W×H (m) | 5.4*1.3*2.1 | |||||
Detail Pictures
