OUCO 280T Hydraulic Molding Machine Servo For Plastic Washbasin
OUCO 280T High Utilization Rate Of Clamping Force Hydraulic Servo Plastic Washbasin Injection Molding Machine
Through technological innovation and closely combined with market demand, we have developed a series of high-quality and high-efficiency injection molding machine products. We always believe that choosing OUCO's products will bring you an unprecedented injection molding machine experience. The excellent injection unit adopts a special screw, which has stronger plasticizing capacity. The products produced are also durable, giving customers satisfaction and peace of mind.
Product Advantages
The OC-280H injection molding machine adopts dual-rail injection technology to enhance the response of injection speed and significantly,improve the quality and accuracy of product molding. We use advanced computers to improve control accuracy, making the entire machine run more smoothly, reducing the operator's operating difficulty and making the operation more concise and efficient. With its energy-saving and environmentally friendly design, OC-280H can save you raw materials and extend the use time of the machine. It will be an excellent choice when you produce plastic products.
Parameters
| MODEL | OC280H | |||||
| Clamping force (kN) | 2800 | |||||
| Space between tie bar (mm*mm) | 610*510 | |||||
| Max. mold thickness (mm) | 650 | |||||
| Min. mold thickness(mm) | 250 | |||||
| Opening stroke (mm) | 360 | |||||
| Ejector stroke(mm) | 190 | |||||
| Ejector force forward(Kn) | 62 | |||||
| Screw diameter(mm) | 65 | |||||
| Screw L/D ratio | 22 | |||||
| Theoretical injection volume (cm3) | 994 | |||||
| Shot weight (PS) g | 914 | |||||
| Injection pressure(MPa) | 143 | |||||
| Screw speed (rpm) | 0-200 | |||||
| Injection rate (g/s) | 359 | |||||
| Motor power (Kw) | 40 | |||||
| Oil tank capacity(L) | 510 | |||||
| Heater power (Kw) | 27 | |||||
| Machine Weight (Ton) | 11 | |||||
| Machine size L×W×H (m) | 8.1*1.9*2.0 | |||||

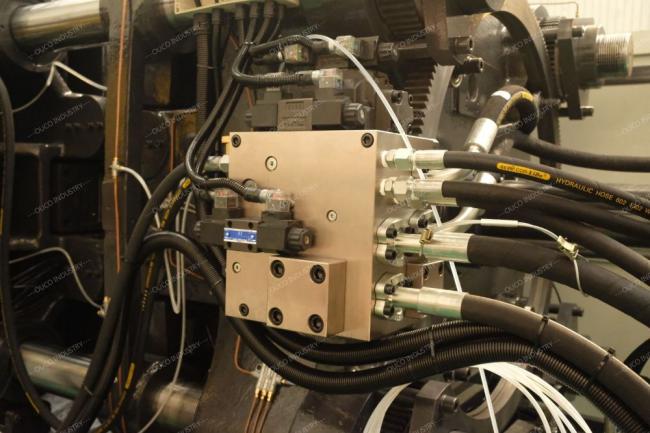

Detail Pictures
