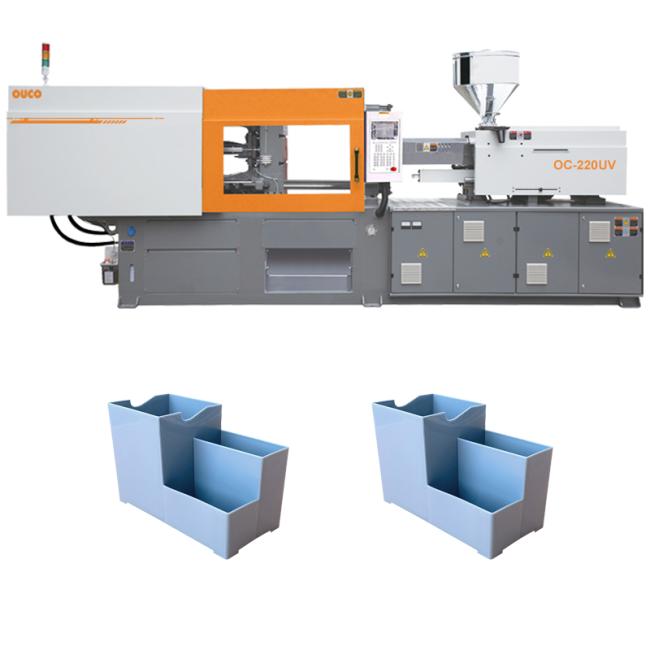

OUCO 220T Hydraulic Servo Office Desktop Plastic Pen Holder Storage Box Injection Molding Machine

Price Negotiable
Price: Negotiable
MOQ: 1
Delivery Time: 2 months
Brand: OUCO
Product Description

OUCO 220T New Design Hydraulic Servo Office Desktop Plastic Pen Holder Storage Box Injection Molding Machine

In OUCO, we focus on every production process, from strict screening of raw materials and accessories to precise polishing of production processes and then to strict testing of finished products, striving for excellence. We also have a professional after-sales service team as a solid backing, we can provide timely and thoughtful technical support and solutions for users. Whether it is equipment installation and debugging, or daily maintenance, we can receive their professional guidance and assistance. We firmly believe that OUCO will provide strong support for your plastic product production business and the sustainable development of your enterprise.



Product Advantages



OC-220UV injection molding machine offers several key advantages to ensure a more efficient, reliable and safe production process. First of all, the use of corrosion-resistant screw barrel ensures long-term stable operation of the equipment and extends its service life. Secondly, the injection position electronic ruler control system ensures the accuracy and consistency of the injection molding process, thus improving product quality and production efficiency. In addition, our injection molding machines also have the function of preventing cold start of the screw, which effectively avoids the risk of damage during startup and protects the normal operation of the equipment.

                                                                 MODEL OC-220UV
Clamping force (kN) 2200
Space between tie bar (mm*mm) 510*510
Max. mold thickness (mm) 550
Min. mold thickness(mm) 200
Opening stroke (mm) 480
Ejector stroke(mm) 150
Ejector force forward(Kn) 67
Screw diameter(mm) 55
Screw L/D ratio 18
Theoretical injection volume (cm3) 569
Shot weight (PS) g 520
Injection pressure(MPa) 145
Screw speed (rpm) 0-200
Dry-cycle time (sec) 4.5
Motor power (Kw) 23
Oil tank capacity(L) 310
Heater power (Kw) 13.1
Machine Weight (Ton) 6.3
Machine size L×W×H (m) 5.4*1.3*2.1

Detail Pictures



Company Profile


Get in Touch

Have questions about our products or want to discuss a custom order? Our team is ready to help you.

Company OUCO (Wuxi) Injection Molding Machinery Equipment Co., Ltd.
Location No 20 Tianshun Road, Yangshan Town, Huishan District, Wuxi, Jiangsu
Contact Person Maggie Zhang
