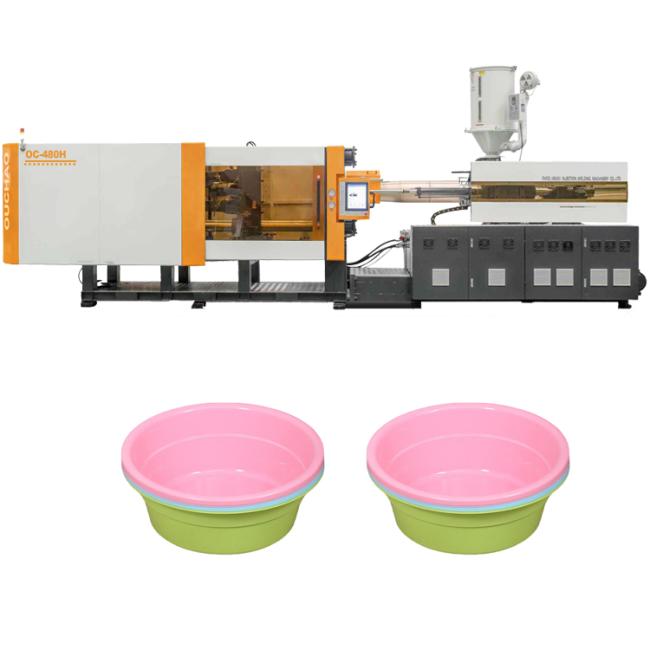

480T Injection Molding Machine For Hydraulically Precise And Efficient Manufacture Of Plastic Products
480T Injection Molding Machine For The Hydraulically Precise And Efficient Manufacture Of Plastic Products
OUCO is a plastics machinery manufacturing limited company integrating production, research and development, specialising in the manufacture of multiple series of high-precision injection molding machines. We insist on advanced technology, superior quality and service, which are favoured by the majority of users in the industry!
Product Advantages
The OUCO 480T injection molding machine is the result of continuous improvement. Survive with high quality, high speed and high energy saving, win respect with quality and reputation. Advanced equipments, precise testing, scientific management ensure that every injection molding machine is a high-performance output. We provide quality and bring you value.
Parameters
| MODEL | OCH-480T | |||||
| Clamping force (kN) | 4800 | |||||
| Space between tie bar (mm*mm) | 820*780 | |||||
| Max. mold thickness (mm) | 730 | |||||
| Min. mold thickness(mm) | 300 | |||||
| Opening stroke (mm) | 900 | |||||
| Ejector stroke(mm) | 190 | |||||
| Ejector force forward(Kn) | 80 | |||||
| Screw diameter(mm) | 85 | |||||
| Screw L/D ratio | 22 | |||||
| Theoretical injection volume (cm3) | 2355 | |||||
| Shot weight (PS) g | 2275 | |||||
| Injection pressure(MPa) | 141 | |||||
| Injection speed (mm/s) | 106 | |||||
| Injection rate (g/s) | 583 | |||||
| Motor power (Kw) | 65 | |||||
| Oil tank capacity(L) | 680 | |||||
| Heater power (Kw) | 35 | |||||
| Machine Weight (t) | 18 | |||||
| Machine size L×W×H (m) | 8.6*2.1*2.2 | |||||

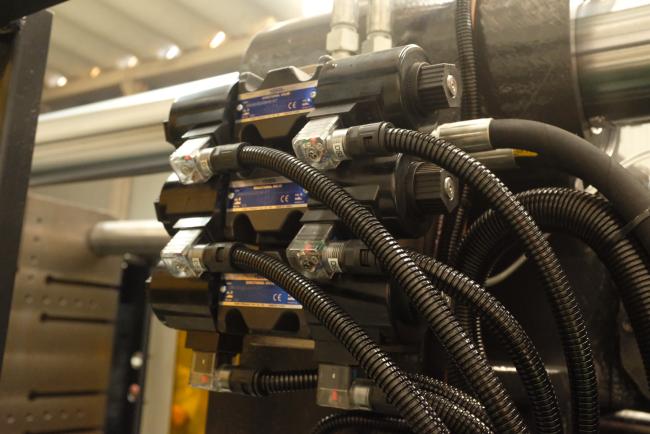

Detail Pictures
