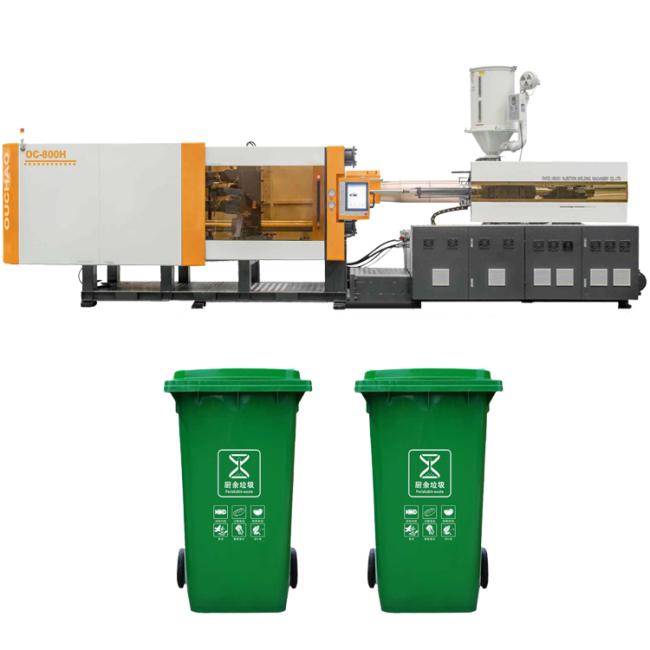

OUCO 800T Save Materials Hydraulic Servo Outdoor Streets Large Capacity Plastic Trash Cans Injection Molding Machine
OUCO 800T Save Materials Hydraulic Servo Outdoor Streets Large Capacity Plastic Trash Cans Injection Molding Machine
Our injection molding machines have established a firm foothold in the market with their excellent quality, leading functions, efficient performance and affordable prices and have won the trust of our customers. They choose to recommend our brand to friends who need to use injection molding machines for production. The high-efficiency injection molding machines we produce are dedicated to improving your production capacity, improving product qualification rate, reducing energy consumption and reducing production costs. We use high-quality raw materials and advanced manufacturing processes, undergo strict testing and inspection to ensure that each machine has high precision, high stability and long service life. We believe that OUCO Injection Molding will become your trustworthy production partner and help you achieve an extraordinary career!
Product Advantages
OC-800H will be your efficient production partner. The clamping force of the injection molding machine is controllable and evenly applied to the mold, reducing wear and tear, improving the precision of plastic products, while protecting the mold and extending the service life of the mold and machine. The whole machine adopts a frame rigidity-strengthening design, which significantly improves the frame's bending resistance and greatly reduces the deformation of the frame and template when the machine is operating. With efficient and reasonable servo system configuration, the injection speed will be higher than that of traditional injection molding machines, improving production efficiency. Fast and precise synchronous locking settings ensure product quality to the greatest extent. The dedicated computer equipped has a high response speed and can monitor various data in real time, making the human-machine interface more humane, intuitive and easy to operate. This series of advantages makes OC-800H an efficient and stable production tool, helping you remain invincible in the market.
Parameters
| MODEL | OC800H | |||||
| Clamping force (kN) | 8000 | |||||
| Space between tie bar (mm*mm) | 1060*860 | |||||
| Max. mold thickness (mm) | 1000 | |||||
| Min. mold thickness(mm) | 450 | |||||
| Opening stroke (mm) | 1300 | |||||
| Ejector stroke(mm) | 280 | |||||
| Ejector force forward(Kn) | 181 | |||||
| Screw diameter(mm) | 100 | |||||
| Screw L/D ratio | 22 | |||||
| Theoretical injection volume (cm3) | 3927 | |||||
| Shot weight (PS) g | 3729 | |||||
| Injection pressure(MPa) | 151 | |||||
| Injection speed (mm/s) | 89 | |||||
| Injection rate (g/s) | 660 | |||||
| Pump power (Kw) | 83 | |||||
| Oil tank capacity(L) | 1020 | |||||
| Heater power (Kw) | 52 | |||||
| Machine Weight (T) | 27 | |||||
| Machine size L×W×H (m) | 10*2.2*2.4 | |||||

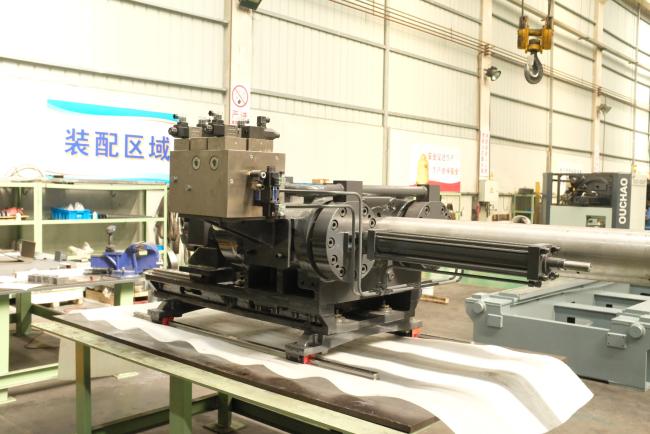

Detail Pictures
