OUCO Environmental Protection And Energy Saving 650T Injection Molding Machine Specializes In Manufacturing Crates
Price:
Negotiable
MOQ:
1
Delivery Time:
2 months
Brand:
OUCO
Product Description

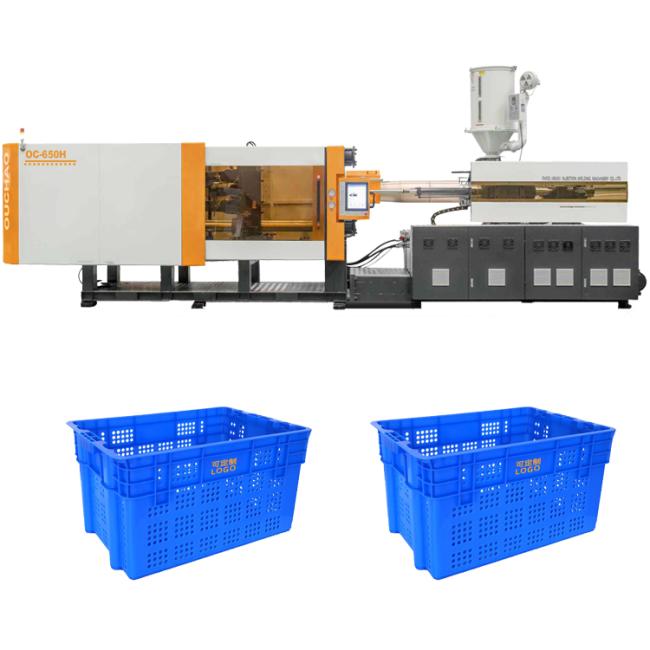

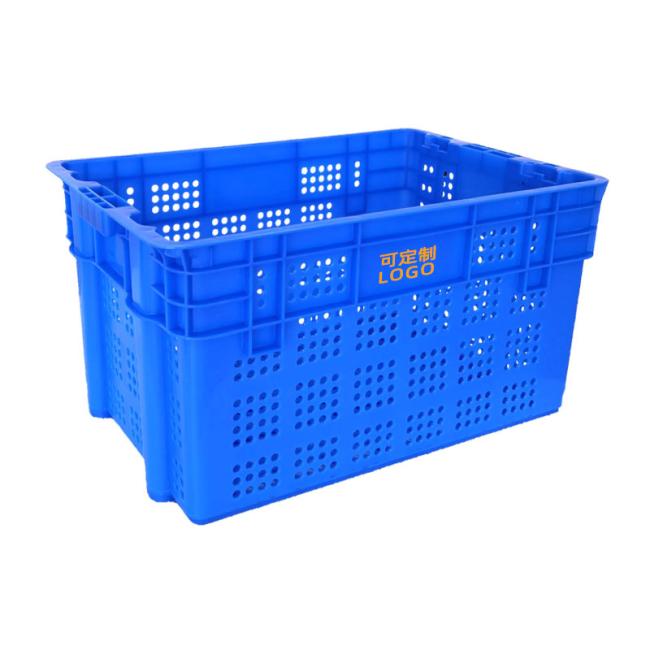

OUCO Environmental Protection And Energy Saving 650T Injection Molding Machine Specializes In Manufacturing Crates
OUCO Injection Molding Machine is a precision injection molding machine manufacturing company limited to bring you the high efficiency injection molding machine you are satisfied with. Focusing on the research and development of core technology, we keep moving forward and making progress, which is the representative of the new power of injection molding. We uphold the quality of survival, quality to win the market. We have an advanced team, accurate testing, scientific management, so that your after-sales without worry. The new era of injection molding industry, OUCO provides you with innovative business opportunities!
Features and advantages:
1.Efficient: We use servo system, clamping force up to 100%, faster response, high repeatability, bringing you more efficient productivity.
2. Stable: we use advanced electronic control system, using Taiwan Hongxun computer, easy to operate, stable machine operation, real-time detection of product data, circuit breaks timely alarm, timely detection.
3. Fast: precise control of a variety of actions synchronized, at the same time as the mold closing mold, oversized mold opening stroke, external flip design makes the template force uniform, greatly improving productivity.
4. Energy-saving: the use of servo motors, the realization of the energy needed to give as much as possible, reducing the unnecessary waste of resources.
Product Advantages
1. Advantages of injection molding part: bimetal screw, not easy to rust, low maintenance cost special screw barrel, easy to clean.
2. Advantages of mold clamping part: equipped with automatic mold adjustment device, accurate matching of molds, timely adjustment, good protection of molds, but also saves labor costs.
3. Advantages of the control part: melting motor speed display, running process at a glance, proportional melting back pressure control, precise control accuracy.
Parameters
| MODEL | OCM-650D | |||||
| Clamping force (kN) | 650 | |||||
| Space between tie bar (mm*mm) | 960*820 | |||||
| Max. mold thickness (mm) | 1000 | |||||
| Min. mold thickness(mm) | 450 | |||||
| Opening stroke (mm) | 1150 | |||||
| Ejector stroke(mm) | 260 | |||||
| Ejector force forward(Kn) | 181 | |||||
| Screw diameter(mm) | 100 | |||||
| Screw L/D ratio | 22 | |||||
| Theoretical injection volume (cm3) | 3730 | |||||
| Shot weight (PS) g | 3602 | |||||
| Injection pressure(MPa) | 137 | |||||
| Injection speed (mm/s) | 93 | |||||
| Injection rate (g/s) | 706 | |||||
| Motor power (Kw) | 75 | |||||
| Oil tank capacity(L) | 950 | |||||
| Heater power (Kw) | 41 | |||||
| Machine Weight (kg) | 24 | |||||
| Machine size L×W×H (mm) | 9000*2100*2300 | |||||
