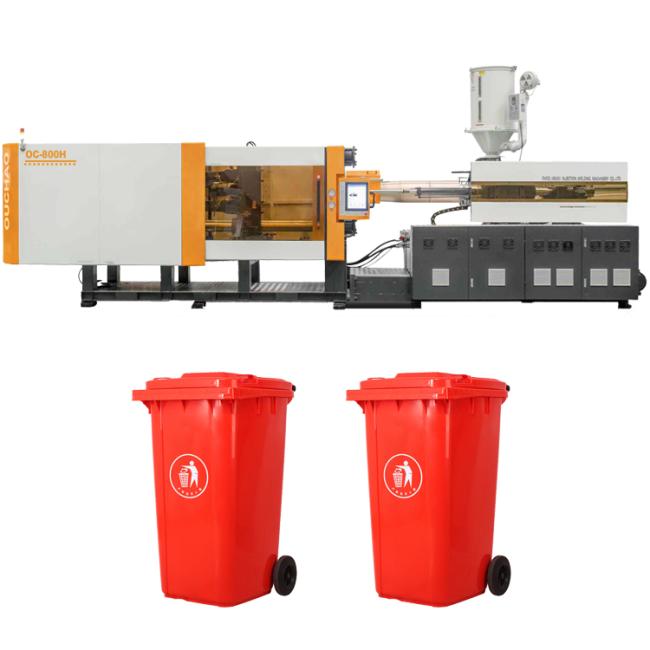

OUCO 800T Highly Responsive Injection Molding Machine Production Of Large Outdoor Trash Cans
Price:
Negotiable
MOQ:
1
Delivery Time:
2 months
Brand:
OUCO
Product Description
OUCO 800T Highly Responsive Injection Molding Machine Specializing In The Production Of Large Outdoor Trash Cans
OUCO is a modernized high-tech industry with complete scientific quality management system.OUCO has more than 30 years of production experience, mainly focusing on one line of injection molding machines, starting from design, independent development, quality production and conscientious sales. With strict quality control, we continue to progress and strive for a higher level. Focusing on pre-investment and adhering to the principle of 'wanting to take first', we are dedicated to pursuing the right machine for you.
Features and advantages:
1. Plasticizing unit: anti-low temperature device, screw starts in advance, good protection of the machine, excellent performance. The connection positioning of nozzle and flange of precursor body is designed as built-in positioning, which is better and not easy to leak glue.
2. Injection unit: hydraulic safety protection, precise control of ejection dwell time, accurate position. Tail plate built-in mold clamping cylinder, clamping force is bigger.
3. Power unit: five-star motor, servo motor, using high-speed, oversized, special oil circuit design and manufacturing, low noise, stable performance, to provide you with sufficient power. Absorb pulsation and reduce noise.
4. The machine itself: sub-assembled, easy to disassemble, beautiful appearance, set aesthetic and practical in one. Adopt Schneider and other imported brands, longer service life.
Product Advantages
1. Excellent molding stability, servo-driven system, pressure, flow rate using closed-loop control, compared with the traditional injection molding machine, molding repeatability is significantly improved.
2. Significant energy saving, using as much as needed to give as much as possible, energy saving 20%-80% than the traditional technology.
3. Constant oil temperature, servo motor proportional output of hydraulic oil, to avoid excess heat generation. Hydraulic oil does not even need to be cooled to realize significant water savings.
2. Significant energy saving, using as much as needed to give as much as possible, energy saving 20%-80% than the traditional technology.
3. Constant oil temperature, servo motor proportional output of hydraulic oil, to avoid excess heat generation. Hydraulic oil does not even need to be cooled to realize significant water savings.
4.High precision gear pump, provide sufficient power to bring you a better experience.
Parameters
| MODEL | OCM-800S | |||||
| Clamping force (kN) | 800 | |||||
| Space between tie bar (mm*mm) | 1070*970 | |||||
| Max. mold thickness (mm) | 1200 | |||||
| Min. mold thickness(mm) | 500 | |||||
| Opening stroke (mm) | 2500 | |||||
| Ejector stroke(mm) | 280 | |||||
| Ejector force forward(Kn) | 212 | |||||
| Screw diameter(mm) | 75 | |||||
| Screw L/D ratio | 21 | |||||
| Theoretical injection volume (cm3) | 1590 | |||||
| Shot weight (PS) g | 1462 | |||||
| Injection pressure(MPa) | 178 | |||||
| Injection speed (mm/s) | 170 | |||||
| Injection rate (g/s) | 750 | |||||
| Motor power (Kw) | 107.5 | |||||
| Oil tank capacity(L) | 900 | |||||
| Heater power (Kw) | 30.02 | |||||
| Machine Weight (kg) | 35 | |||||
| Machine size L×W×H (mm) | 9400*2600*2600 | |||||

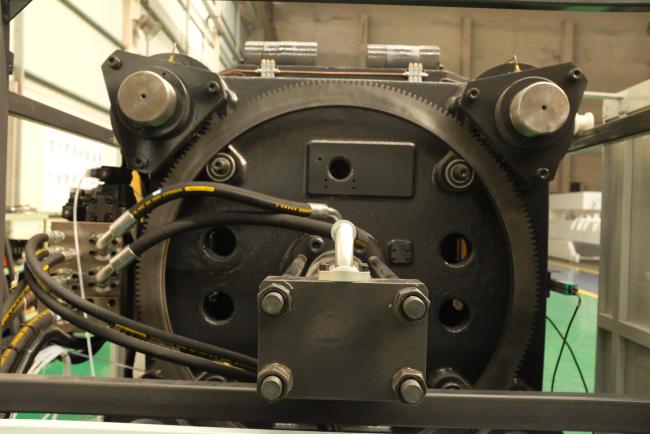

Detail Pictures
