OUCO 800T CE Certification Popular Injection Molding Machine For Production Of Garbage Cans
Price:
Negotiable
MOQ:
1
Delivery Time:
2 months
Brand:
OUCO
Product Description

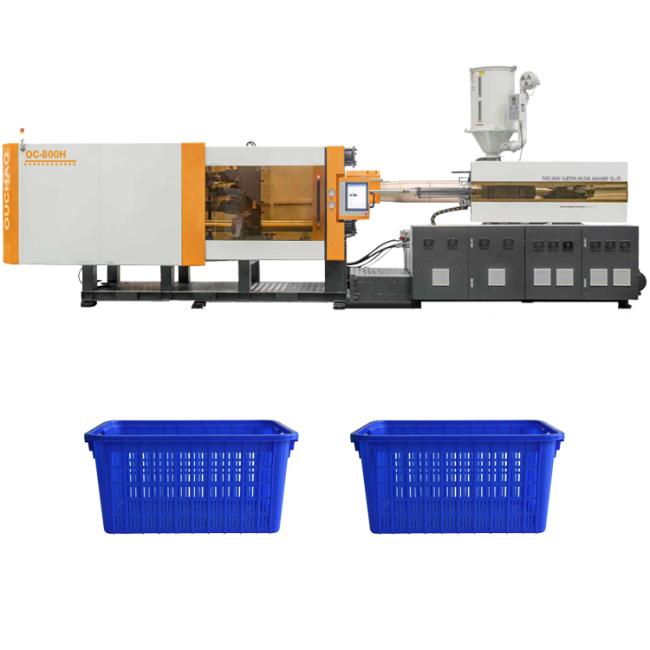

OUCO 800T With CE Certification Popular Injection Molding Machine For The Production Of Garbage Cans
OUCO has more than 30 years of building history, we inherited the excellent rich experience. We are not proud of ourselves and focus on doing a good job on every injection molding machine. Insisting on the production concept of 'either do not do, do well', we keep striving forward to bring the best quality products to our customers. We are not satisfied with the status quo, and constantly introduce advanced technology to inject vitality into the development of the enterprise, using advanced center clamping structure. Integrating design, production and service, we bring you a brand new experience of using the machine and be your right-hand man!
Features and advantages:
1.Powerful injection unit: our machine can be said to be the perfect combination of high efficiency, precision and reliability. With a high degree of automation and intelligence, it can precisely control the injection speed, pressure and position to ensure product quality and consistency.
2. Efficient hydraulic system: the source of power and efficiency. Through careful design and continuous optimization, it can ensure the smooth supply of hydraulic oil and quick response.
Product Advantages
1. High precision: each product, whether from size, or shape, meets the design requirements, high repeatability.
2. Stability:The machine runs smoothly with few stoppages, installed with alarm light, equipped with advanced computerized device for real-time monitoring, giving quick solutions to problems.
3. Durability:Using high quality materials with advanced manufacturing process, it has good durability and long service life.
4. High efficiency and energy saving: bring you the maximum production benefit, reduce production energy consumption and improve production efficiency.
Parameters
| MODEL | OCM-800S | |||||
| Clamping force (kN) | 800 | |||||
| Space between tie bar (mm*mm) | 1070*970 | |||||
| Max. mold thickness (mm) | 1200 | |||||
| Min. mold thickness(mm) | 500 | |||||
| Opening stroke (mm) | 2500 | |||||
| Ejector stroke(mm) | 280 | |||||
| Ejector force forward(Kn) | 212 | |||||
| Screw diameter(mm) | 75 | |||||
| Screw L/D ratio | 21 | |||||
| Theoretical injection volume (cm3) | 1590 | |||||
| Shot weight (PS) g | 1462 | |||||
| Injection pressure(MPa) | 178 | |||||
| Injection speed (mm/s) | 170 | |||||
| Injection rate (g/s) | 750 | |||||
| Motor power (Kw) | 107.5 | |||||
| Oil tank capacity(L) | 900 | |||||
| Heater power (Kw) | 30.02 | |||||
| Machine Weight (kg) | 35 | |||||
| Machine size L×W×H (mm) | 9400*2600*2600 | |||||

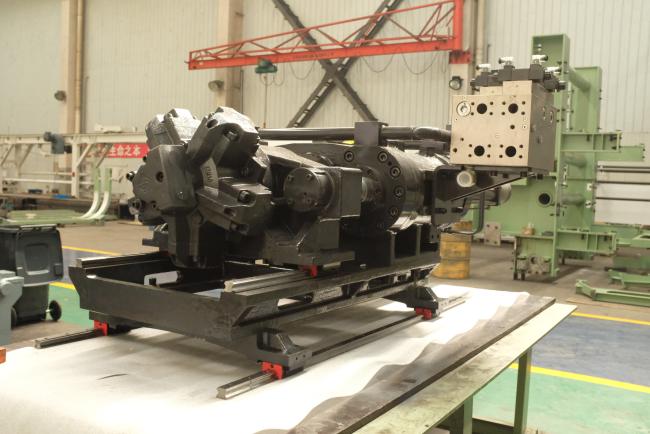

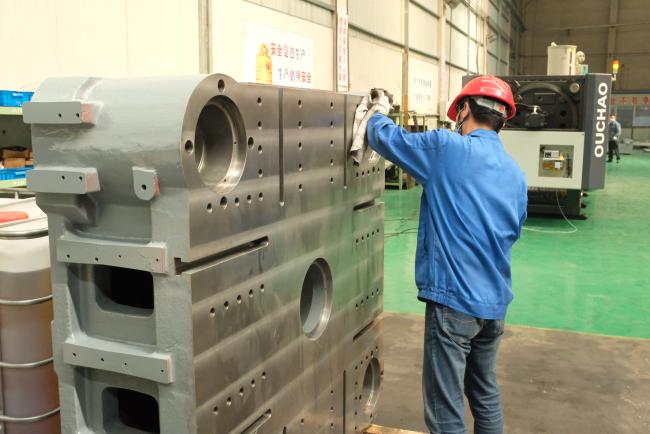

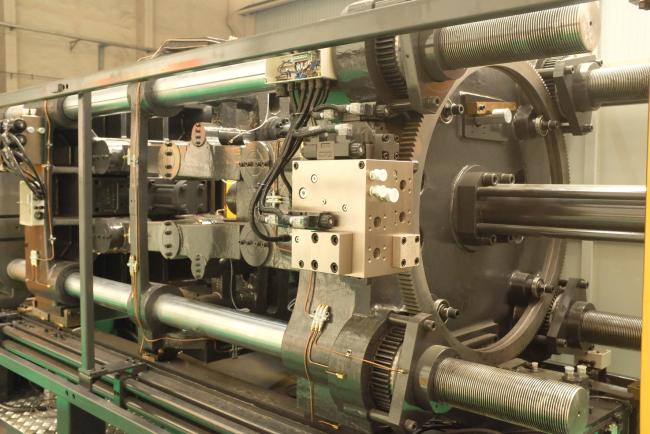

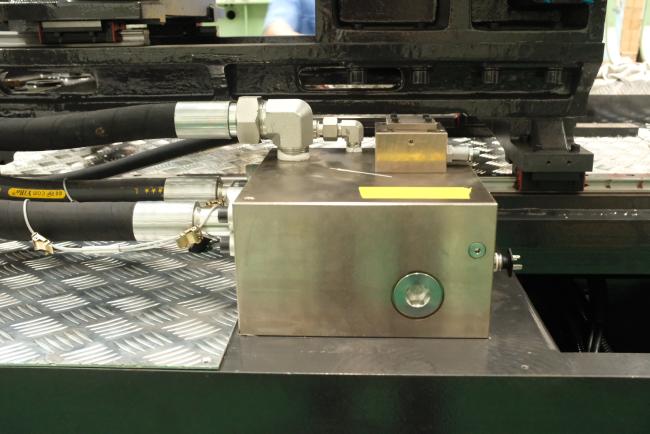

Detail Pictures
