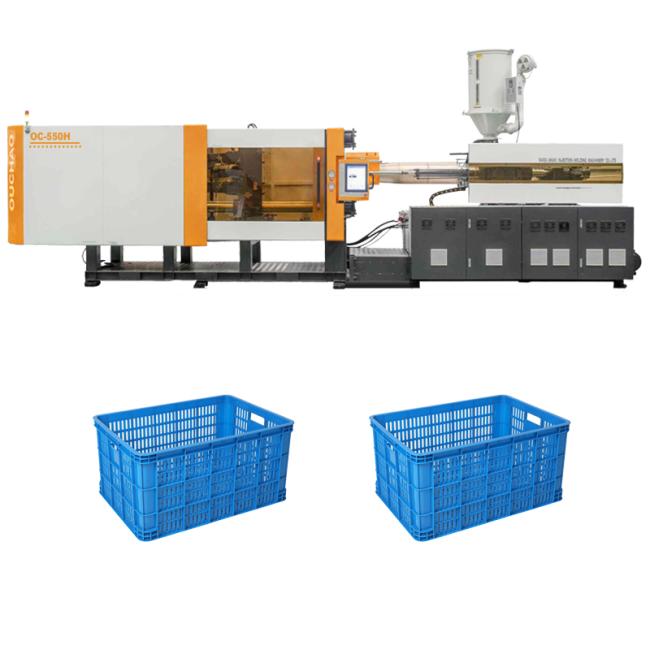

Customisable High Precision Production Of Plastic Fruit Baskets OUCO 550T Servo-Hydraulic Injection Molding Machine
Customisable High Precision Production Of Plastic Fruit Baskets OUCO 550T Servo-Hydraulic Injection Molding Machine
OUCO injection moulding machines, as a leading brand in the industry, provide more environmentally friendly and efficient injection moulding solutions with its unique energy-saving technology and excellent performance. With years of technology accumulation and R&D advantages, we have successfully developed energy-saving injection moulding machines with market competitiveness. In order to meet the needs of our customers, we are not afraid of hardships and challenges, we independently develop and manufacture high-quality injection moulding equipment, and provide customers with tailor-made high-efficiency, energy-saving and professional production solutions. We win the favour of the market with quality and win the praise of customers with service. The machine adopts advanced hydraulic power system, which can effectively reduce energy consumption and improve moulding efficiency. Meanwhile, the unique design and energy-saving advantages of OUCO injection moulding machine will create more business opportunities and development possibilities for you. When producing the same number of products, OUCO injection moulding machine can save nearly 30% of energy, which means that companies can improve productivity while reducing costs. In addition, the stability and high quality of OUCO injection moulding machines are also recognised by users, helping companies to improve product quality. Let's work together to create a better green future!
Product Advantages
2. Advantage of hydraulic system: adopting advanced control technology and high-efficiency pumps, which greatly improves the power transmission efficiency and reduces the energy loss. The accessories are selected from famous brands, which bring unlimited possibilities for your production.
4. Convenient operation: the machine design is more humane, easy and convenient to operate, reduces the difficulty of operation, reduces the labour cost caused by errors to a certain extent, and reduces the operator's fatigue.
Parameters
| MODEL | OCH-550T | |||||
| Clamping force (kN) | 5500 | |||||
| Space between tie bar (mm*mm) | 860*800 | |||||
| Max. mold thickness (mm) | 800 | |||||
| Min. mold thickness(mm) | 300 | |||||
| Opening stroke (mm) | 1010 | |||||
| Ejector stroke(mm) | 210 | |||||
| Ejector force forward(Kn) | 103 | |||||
| Screw diameter(mm) | 90 | |||||
| Screw L/D ratio | 22 | |||||
| Theoretical injection volume (cm3) | 2608 | |||||
| Shot weight (PS) g | 2519 | |||||
| Injection pressure(MPa) | 118 | |||||
| Injection speed (mm/s) | 133 | |||||
| Injection rate (g/s) | 817 | |||||
| Motor power (Kw) | 75 | |||||
| Oil tank capacity(L) | 850 | |||||
| Heater power (Kw) | 41 | |||||
| Machine Weight (kg) | 20 | |||||
| Machine size L×W×H (mm) | 8700*2100*2200 | |||||

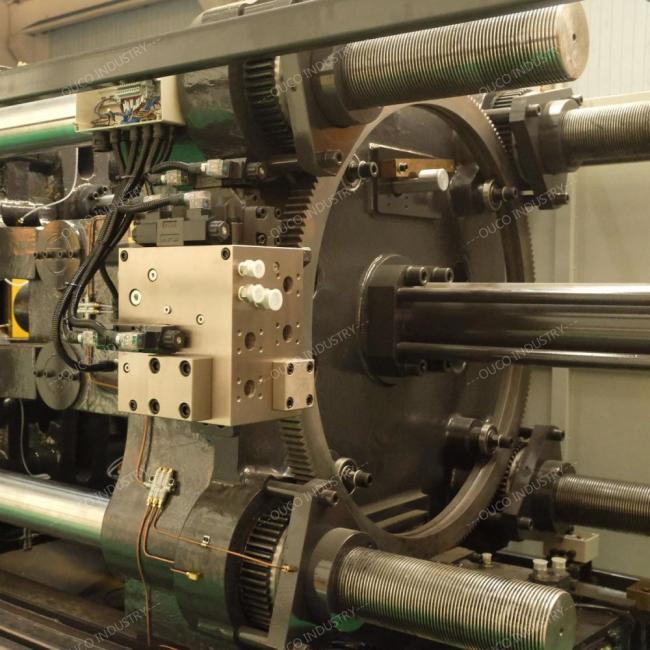

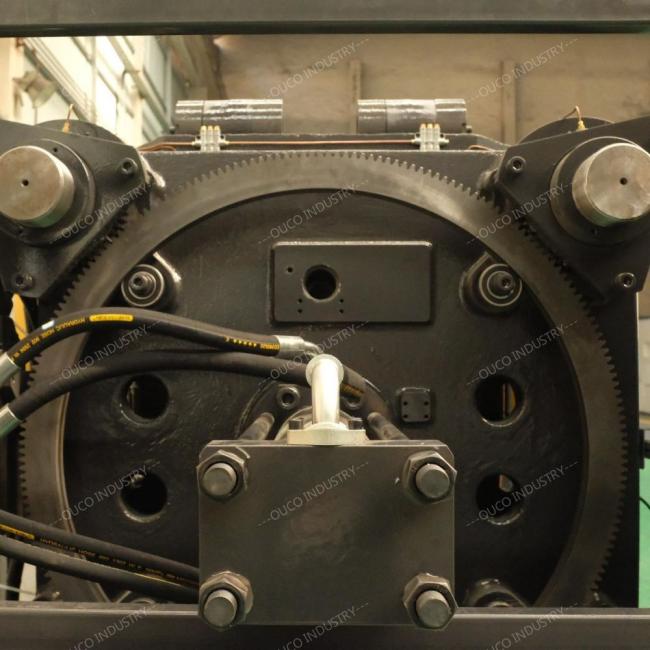

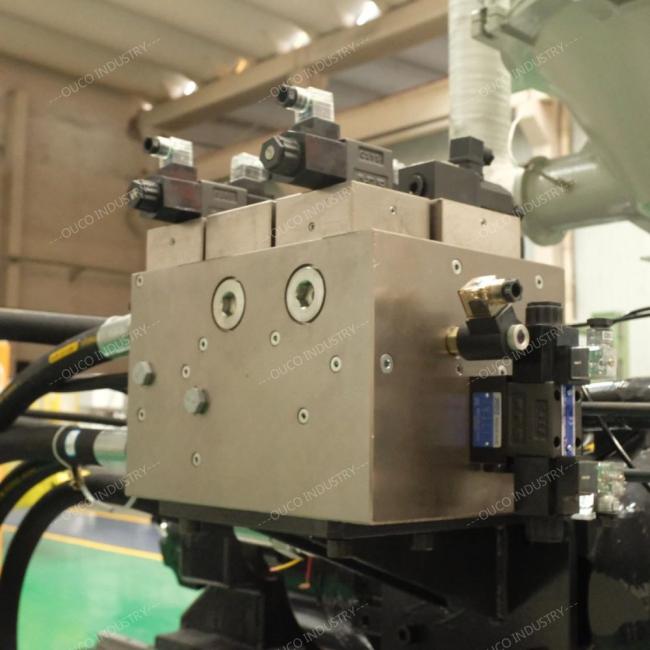

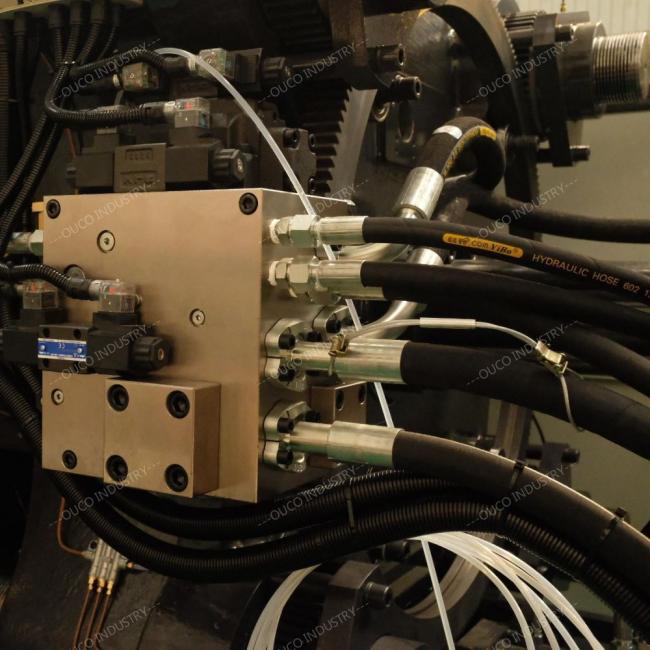

Detail Pictures
