OUCO 800T CE Certification Injection Molding Machine For Garbage Cans
Price:
Negotiable
MOQ:
1
Delivery Time:
2 months
Brand:
OUCO
Product Description

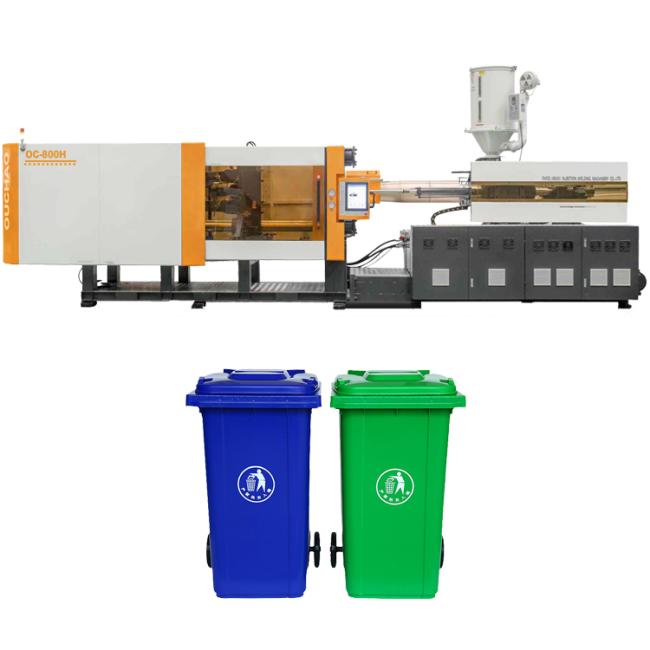

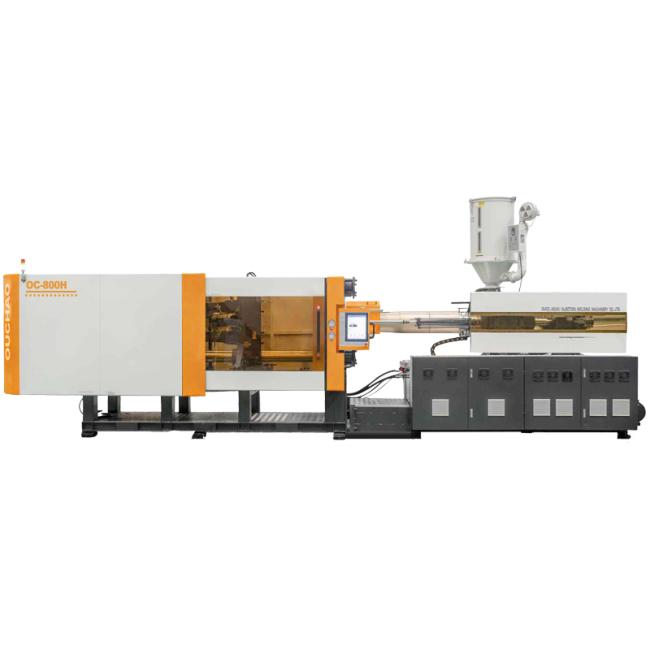

OUCO 800T CE Certification Injection Molding Machine Garbage Cans
OUCO Plastic Machinery, with advantageous geographical location and covering an area of 35,000 square metres, is a professional plastic injection moulding machine manufacturer. The company is mainly engaged in plastic injection moulding machine research and development, production and sales. There are dozens of units in stock and fast delivery. There is a special after-sales service centre, aiming to be close to customers and provide the most convenient and fast information and after-sales service. Jiangsu OUCO produces injection moulding machine models covering clamping force from 150 tonnes to 2200 tonnes, and injection volume from small 231 grams to maximum 19,336 grams. OUCO has passed ISO-9001 and European CE safety mark certification, and has won trust and reputation for its quality and innovation.OUCO's abbreviation combines the production concept with simplicity and atmosphere to show the elegance of a big factory. Based on our business philosophy, we provide our customers with the best products and the most satisfactory service at reasonable prices.
Product Advantages
The new servo-hydraulic energy-saving model for external curved clamping moulds is suitable for a wide range of applications. Industries include household goods, stationery, automotive, 3C and household appliances, especially multifunction printers, laptops or computer parts. Its large clamping stroke is also suitable for deeper plastic products.
1. The injection base adopts modular design, different matching types can be selected according to the injection volume. Adopting double-cylinder injection technology, the injection response is fast, the precision is high, and the products are long-lasting and durable.
2. New type of guide column injection base structure, no sagging of material tube, smooth and fast movement, high cleanliness.
3. Oil-free bearings are used in the moving parts of the platen and elbow joints, which greatly reduces the maintenance cost and provides a cleaner production environment.
4. Adopting servo energy saving system can reduce energy consumption up to 70%. It also saves energy and reduces emissions, giving as much energy as needed, greatly reducing the waste of resources.
5. Excellent precision control, the error of finished weight is about 0.7%~0.4%.
1. The injection base adopts modular design, different matching types can be selected according to the injection volume. Adopting double-cylinder injection technology, the injection response is fast, the precision is high, and the products are long-lasting and durable.
2. New type of guide column injection base structure, no sagging of material tube, smooth and fast movement, high cleanliness.
3. Oil-free bearings are used in the moving parts of the platen and elbow joints, which greatly reduces the maintenance cost and provides a cleaner production environment.
4. Adopting servo energy saving system can reduce energy consumption up to 70%. It also saves energy and reduces emissions, giving as much energy as needed, greatly reducing the waste of resources.
5. Excellent precision control, the error of finished weight is about 0.7%~0.4%.
Parameters
| MODEL | OCM-800S | |||||
| Clamping force (kN) | 800 | |||||
| Space between tie bar (mm*mm) | 1070*970 | |||||
| Max. mold thickness (mm) | 1200 | |||||
| Min. mold thickness(mm) | 500 | |||||
| Opening stroke (mm) | 2500 | |||||
| Ejector stroke(mm) | 280 | |||||
| Ejector force forward(Kn) | 212 | |||||
| Screw diameter(mm) | 75 | |||||
| Screw L/D ratio | 21 | |||||
| Theoretical injection volume (cm3) | 1590 | |||||
| Shot weight (PS) g | 1462 | |||||
| Injection pressure(MPa) | 178 | |||||
| Injection speed (mm/s) | 170 | |||||
| Injection rate (g/s) | 750 | |||||
| Motor power (Kw) | 107.5 | |||||
| Oil tank capacity(L) | 900 | |||||
| Heater power (Kw) | 30.02 | |||||
| Machine Weight (kg) | 35 | |||||
| Machine size L×W×H (mm) | 9400*2600*2600 | |||||
Detail Pictures
