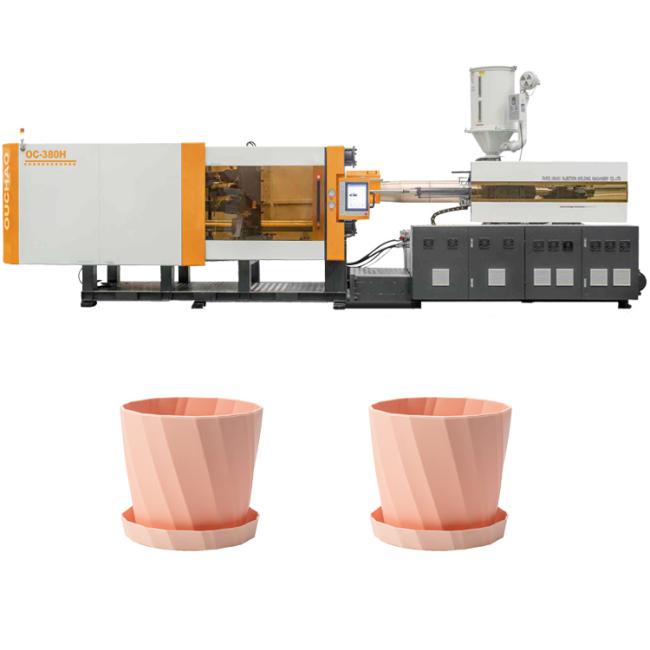

380T Hydraulic Injection Molding Machine For Efficient Production Of Flower Pots
380T Hydraulic Injection Molding Machine For Efficient Production Of Flower Pots
OUCO is a famous brand focusing on injection moulding machine field, and its injection moulding machines enjoy a good reputation in the industry.OUCO injection moulding machines provide high quality production equipment for various industries with exquisite craftsmanship, reliable quality and high efficiency.OUCO injection moulding machine adopts advanced hydraulic system, which ensures that the machine can run stably even at high pressure and high speed. At the same time, its precise control system can achieve accurate control of the injection moulding process to ensure the accuracy and quality of the products. In addition, OUCO injection moulding machines are energy-saving and environmentally friendly, which can reduce production costs and energy consumption. In terms of design, OUCO injection moulding machine focuses on user-friendly operation and adopts touch screen control system, which is easy to operate and understand. At the same time, its compact body design also saves production space and improves production efficiency. Overall, OUCO injection moulding machines have become the first choice of production equipment for many enterprises due to their excellent performance, reliable quality and user-friendly design.
Product Advantages
1.High efficiency and stability: adopting advanced hydraulic system and precise control system to ensure that the machine can still run stably under the state of high pressure and high speed, and improve the production efficiency.
2.Energy saving and environmental protection: with the characteristics of energy saving and environmental protection, it reduces the production cost and energy consumption, which meets the requirements of green production.
3.Humanised design: the touch screen control system is easy to operate and easy to understand, and the machine body is compact and space-saving, which makes the production easier and more efficient.
Choosing OUCO injection moulding machine is choosing quality, efficiency and environmental protection. We promise to provide the best quality products and perfect service for every customer.
Parameters
| MODEL | OCH-380T | |||||
| Clamping force (kN) | 3800 | |||||
| Space between tie bar (mm*mm) | 720*680 | |||||
| Max. mold thickness (mm) | 730 | |||||
| Min. mold thickness(mm) | 300 | |||||
| Opening stroke (mm) | 800 | |||||
| Ejector stroke(mm) | 190 | |||||
| Ejector force forward(Kn) | 62 | |||||
| Screw diameter(mm) | 80 | |||||
| Screw L/D ratio | 22 | |||||
| Theoretical injection volume (cm3) | 1759 | |||||
| Shot weight (PS) g | 1699 | |||||
| Injection pressure(MPa) | 133 | |||||
| Injection speed (mm/s) | 99 | |||||
| Injection rate (g/s) | 481 | |||||
| Motor power (Kw) | 47.5 | |||||
| Oil tank capacity(L) | 125 | |||||
| Heater power (Kw) | 27 | |||||
| Machine Weight (t) | 13 | |||||
| Machine size L×W×H (m) | 8.2*1.9*2.0 | |||||

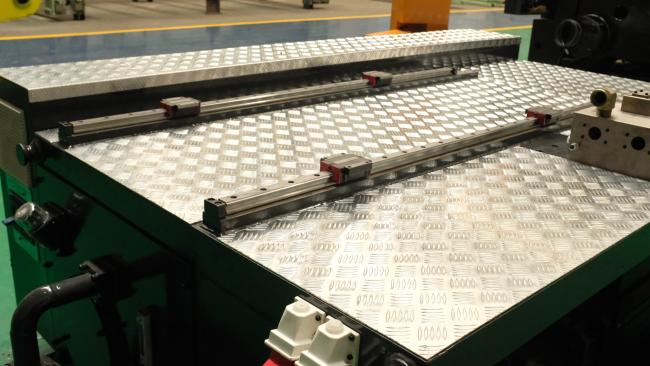

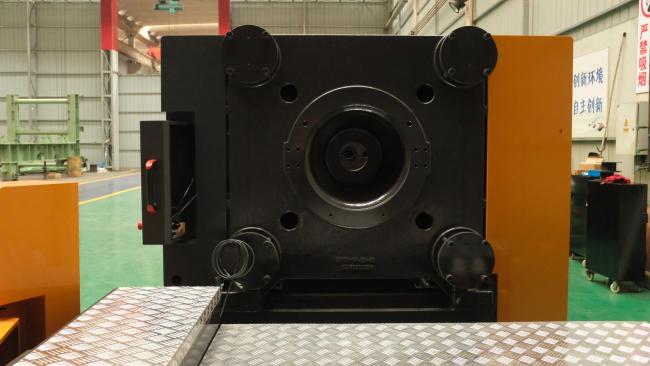

Detail Pictures
Company Profile
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
