Diaphragm Intelligent Valve Positioner Single Acting Failsafe C45PF-RSA
Smart valve positioner, angular stroke, single acting, failsafe, stainless steel corrosion-resistant, split body anti-high temperature vibration
TORLEO series intelligent valve positioner has a quick initialization one-key auto-tuning function. After the positioner is assembled to the pneumatic actuator/control valve according to the installation requirements (straight stroke: the rotation angle of the feedback rod is required to reach 60°as far as possible 'angular stroke: the rotation angle is 90°), just press and hold the operation of the user interface of the machine Release the left button of the button after 3 seconds, the positioner will start to start the quick initialization and one-button auto-tuning, and automatically judge the switching characteristics of the valve (air to open or air to close) Automatically calculate the size of the valve's upper and lower strokes and operating time, and automatically determine The size of the friction coefficient of the valve, the automatic extraction and calculation of the characteristic parameters that meet the needs of high-precision control (0.1% - 0.3%). The entire self-tuning process can be completed within 3 minutes, and the LCD display dynamically displays the entire self-tuning process to achieve convenient operation.
Typical valve application
Diaphragm control valve, single-acting ball valve, single-acting butterfly valve
Technical features of the product
-
Nozzle baffle + symmetrical membrane valve structure, strong ability to resist dust, moisture and oil;
-
Built-in keyboard and large LCD screen, the positioner can be debugged without a handheld operator;
-
HART communication, modular design, convenient for users to choose and use;
-
Valve position output, modular design, convenient for users to choose and use;
-
Configure linear, quick opening, equal percentage and user-defined flow characteristics;
-
One-key auto-tuning operation to meet the needs of users for quick installation and fool-like debugging;
-
PID compound control algorithm can achieve 0.1-0.3% control accuracy.
Performance indicators
| Item | Indicator |
| Input signal | 4~20mA or 4~20mA+HART, split-range control can be set |
| Sensor type | spiral |
| Gas source | pressure 1.4~6bar; no oil, no moisture, no dust and dirt |
| Journey | 0~120º |
| Input resistance | 490☊(max.)/20mA(DC) |
| Electrical interface | NPT1/2 or user customized |
| Pneumatic interface | NPT1/4 |
| Repeatability | ±0.3%F.S. |
| Linear | ±0.3%F.S. |
| Hysteresis | ±0.3%F.S |
| Sensitivity | ±0.2%F.S |
| Output characteristics | linear, quick opening (25:1, 50:1), equal percentage (1:25, 1:50) |
| Protection class | IP66 |
| Explosion-proof grade | without |
| Security level | SIL3 |
| Fault state |
failsafe Off power, off signal, off gas, the valve is in the initial state |
| Operating temperature | -30℃~85℃ (host), -40℃~110℃ (sensor) |
| Material | 316 stainless steel |
| Gross weight | 2.5Kg |
| Dimensions | 240L*80W*110H (mm) |

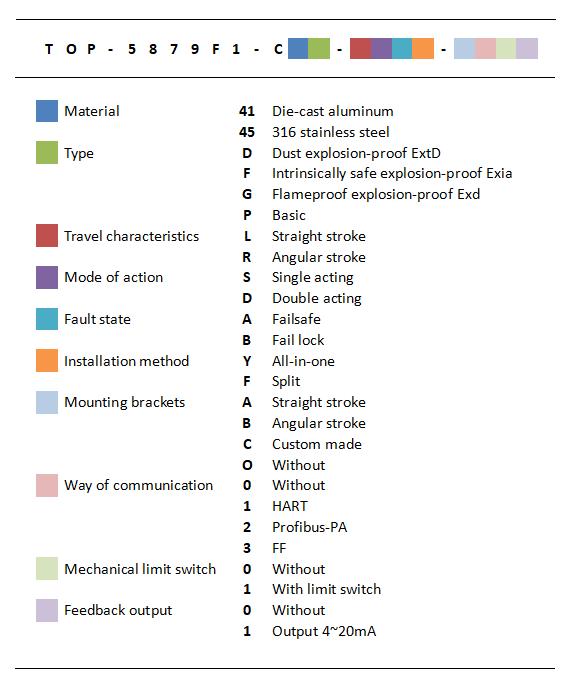

Selection guide for TOP-5879F1 C series smart valve positioner
