Metric Mold Core Pins SKS3 Material Polishing 59HRC 0.003mm EDM Accuracy

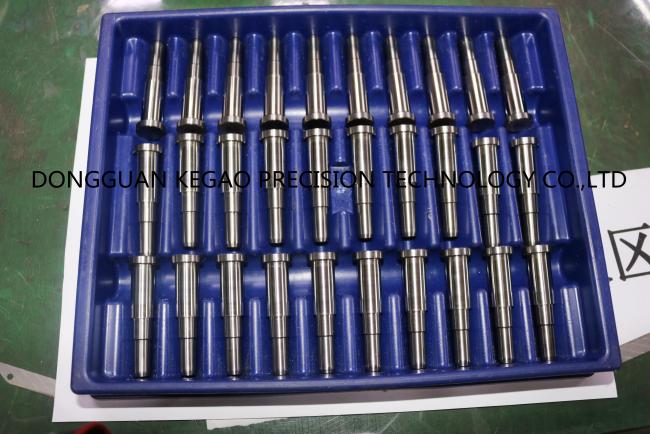

Center Pin For Plastic Injection Machine Parts And SKD11 Material With TiN
Description:
| Parts Name: | Center Pin For Plastic Injection Machine Parts And SKD11 Material With TiN | Hardness: | 57-59HRC |
| Product size: | Customized/As Per Drawings | Grinding accuracy: | ±0.001mm |
|
|
Japan (SKD11.SKD61.SKH51.S45C) | Tolerance: | 0.001mm |
| USA (AISA.D2.H13.P20.M2) | EDM Accuracy: | ±0.003mm | |
| Germany (DIN.2379.2363.2344.2347) | Grind Clear Angle Max: | 0.02 | |
| ASSAB(Rigor.DIVEAR.Impax.Elmax.VANADIS4.STAVAX) | EDM Angle Max: | 0.02 | |
| Process: | Grinding | Grinding Finish Ra: | 0.2 |
| Application: | Center Pin | EDM Finish Ra: | 0.3 |
| Wire Cutting Finish Ra: | 0.3-0.4 | ||
| Processing flow: | Heat treatment →Grinding→Quality inspection | ||
Business Scope:
1. Core pin,cavity pin,insert pin etc
2. HSS punch ,Precision punch ,Special-shaped punch
3. Ejector pins,ejector sleeve,two-stage ejector pins etc
4. Guide pillars ,Guide bushings ,Guide post set
5. Slide Core Units,Latch locks,locating Series
Specification:
1. Standards: MISUMI,HASCO,DME,DAYTON
2. Size tolerance within +/-0.001mm
3. Axiality within 0.002mm
4. Roundness within 0.0015mm
5. Polishing: can make close to Ra0.4 standard is R0.8
6. Further dimensions, lengths and materials available on request
7. The punch & die can be replace when it is worn
Package:
Coated with anticorrosive oil, packed in carton box with bubble wrap, together with QA report.
Express:
DHL, FedEx, UPS, TNT,by Sea or by air
Payment:
T/T, Paypal, Western Union,50% deposit,balance before shipment is available
Our feature:
1. 100% QC inspection before shipment;
2. Feedback within 4 hours and Good English Communication;
3. Good training export sales can give professional suggestion on product;
4. Customized making according to your drawing papers;
5. Accept trial order and small order
A: We are factory.
Q: What is your MOQ?
A: Without MOQ limited, trial order before mass production is welcomed.
Q:What about quality control?
A: Self-inspection in every process by the production operator. Spot inspection and final inspection executed by inspectors. If you found any problems when received the parts, please contact with us in time, we will provide a solution within 8 hours.
Q: What is the after-sales?
A: We will free remake parts or return payment if are sure that it is our error.
Shipping:
We ship using express such as DHL, UPS, FEDEX etc. or according to customer's requirement . It takes about 3-5 days to arrive your front door, and proof of shippments are provided with a shipping or tracking number. And we ship by occean shippment for larger quantity items, it will be economic for customers.
If you are interested, please do not hesitate to contact us! Thank you!
