1.5m To 6m Width Woven Wire Mesh Screen 304 316 316L Stainless Steel Super Width

Price Negotiable

Price: Negotiate

MOQ: 1 square meter

Delivery Time: 1-7 workingdays

Brand: Xingkuan Tech

Product Description

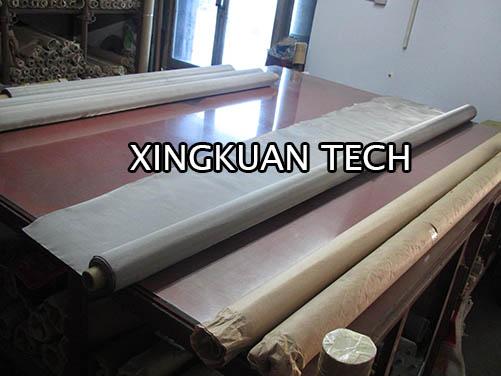

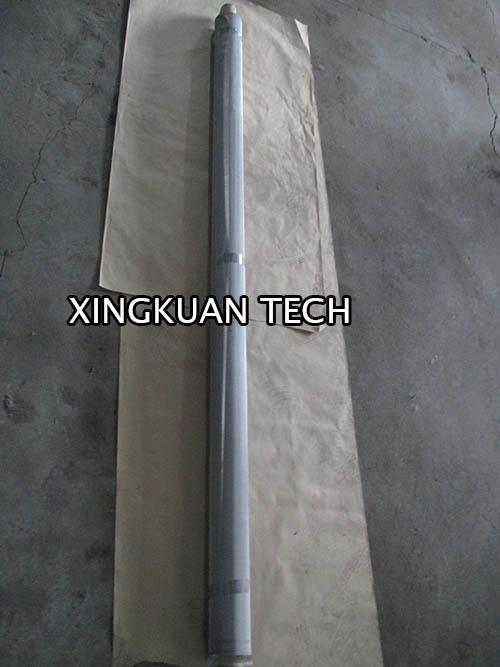

1.5m-6m width 304,316,316L Stainless steel super width wire mesh

Quick details & specifications :

Material : Stainless steel304,304A,304L,316,316L,etc
Edge :open edge
Weaving pattern :Plain ,twill , dutch , reverse dutch ,etc
Mesh:upto 3500 mesh
Wire diameter :>min 0.02mm
Roll Width : 1.5m (5ft ) ,1.6m,1.8m,2m,2.1m,2.5m,3m,4m,5m,6m
Roll length :standard 30m /100ft

Stainless steel wire chemical content
AISI	(%)
Mateial	(%)
	C	Si	Mn	P	S	Ni	Cr	Mo
304	≤0.08	≤1.00	≤2.00	≤0.045	≤0.030	8.00~10.50	18.00~20.00	-
304H	>0.08	≤1.00	≤2.00	≤0.045	≤0.030	8.00~10.50	18.00~20.00	-
304L	≤0.030	≤1.00	≤2.00	≤0.045	≤0.030	9.00~13.50	18.00~20.00	-
316	≤0.045	≤1.00	≤2.00	≤0.045	≤0.030	10.00~14.00	10.00~18.00	2
								~
								3
316L	≤0.030	≤1.00	≤2.00	≤0.045	≤0.030	12.00~15.00	16.00~18.00	2
								~
								3
430	≤0.12	≤0.75	≤1.00	≤0.040	≤0.030	≤0.60	16.00~18.00	-
430A	≤0.06	≤0.50	≤0.50	≤0.030	≤0.50	≤0.25	14.00~17.00	-

Parts of stainless steel wire mesh specification
Mesh	Wire diameter		Aperture		open area	Mesh weight -pound /100 square feet
Mesh	inch	mm	Inch	mm	open area	Mesh weight -pound /100 square feet
8X8	0.028	0.71	0.097	2.46	60.2	41.1
10X10	0.025	0.64	0.075	1.91	56.3	41.2
10X10	0.02	0.51	0.08	2.03	64	26.1
12X12	0.023	0.584	0.06	1.52	51.8	42.2
12X12	0.02	0.508	0.063	1.6	57.2	31.6
14X14	0.023	0.584	0.048	1.22	45.2	49.8
14X14	0.02	0.508	0.051	1.3	51	37.2
16X16	0.018	0.457	0.0445	1.13	50.7	34.5
18X18	0.017	0.432	0.0386	0.98	48.3	34.8
20X20	0.02	0.508	0.03	0.76	36	55.2
20X20	0.016	0.406	0.034	0.86	46.2	34.4
24X24	0.014	0.356	0.0277	0.7	44.2	31.8
30X30	0.013	0.33	0.0203	0.52	37.1	34.8
30X30	0.012	0.305	0.0213	0.54	40.8	29.4
30X30	0.009	0.229	0.0243	0.62	53.1	16.1
35X35	0.011	0.279	0.0176	0.45	37.9	29
40X40	0.01	0.254	0.015	0.38	36	27.6
50X50	0.009	0.229	0.011	0.28	30.3	28.4
50X50	0.008	0.203	0.012	0.31	36	22.1
60X60	0.0075	0.191	0.0092	0.23	30.5	23.7
60X60	0.007	0.178	0.0097	0.25	33.9	20.4
70X70	0.0065	0.165	0.0078	0.2	29.8	20.8
80X80	0.0065	0.165	0.006	0.15	23	23.2
80X80	0.0055	0.14	0.007	0.18	31.4	16.9
90X90	0.005	0.127	0.0061	0.16	30.1	15.8
100X100	0.0045	0.114	0.0055	0.14	30.3	14.2
100X100	0.004	0.102	0.006	0.15	36	11
100X100	0.0035	0.089	0.0065	0.17	42.3	8.3
110X110	0.004	0.1016	0.0051	0.1295	30.7	12.4
120X120	0.0037	0.094	0.0064	0.1168	30.7	11.6
150X150	0.0026	0.066	0.0041	0.1041	37.4	7.1
160X160	0.0025	0.0635	0.0038	0.0965	36.4	5.94
180X180	0.0023	0.0584	0.0033	0.0838	34.7	6.7
200X200	0.0021	0.0533	0.0029	0.0737	33.6	6.2
250X250	0.0016	0.0406	0.0024	0.061	36	4.4
270X270	0.0016	0.0406	0.0021	0.0533	32.2	4.7
300X300	0.0051	0.0381	0.0018	0.0457	29.7	3.04

Descriptions :

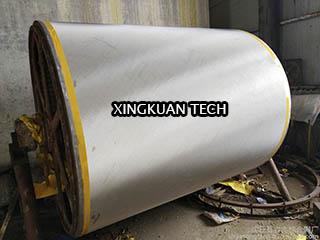

Noramlly , Roll width >1.3m , it belongs to super wide wire mesh for stainless steel wire mesh production . supre wide stainless steel wire mesh 's width is from 1.5m-6.5m . it includes plain and twill weave . It is often used in papermaking machines, papermaking mesh cages and other purposes, for plain weave ,The number of wide mesh above 2m is generally 4-120 mesh.for twill weave , it is from 150-250 mesh .

Applications:

Paper making
printing
Petroleum industry as mud mesh,.
Chemical fiber industry as screen mesh.
Plating industry as acid cleaning mesh.
This cloth has a wide application capable of supporting greater loads and finer filtrations.

Notice :

Own a large stock for standard size , save time and cost for you .
Free sample in standard size is available
Any customerized special request is always avilable .
Drawings or item descriptions or SAMPLE will help us to serve you in better and right way

Please offer below datas for the inquiry :

1.Material

2. Mesh & wire diameter

3. roll length and width

4. any special request : packing , delivery time , etc .
