Stainless steel flat wire belting , honeycomb conveyor belt 201 304 316
201/304/316 Stainless steel flat wire belting , honeycomb conveyor belt
Descriptions :
Honeycomb is an ideal choice for any application which requires both durability and an open belt design whilst maintaining a flat carrying surface. Its high strength-toweight ratio also makes it an ideal choice for customers keen to improve their energy efficiency.This positively driven belting is used in a wide range of industries. a heavy duty belt with an open area that is particularly useful in drainage or cooling applications.
Quick Detail :

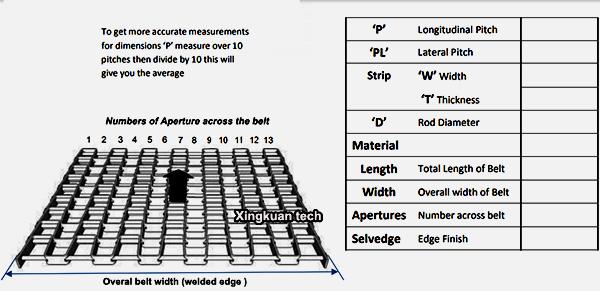

| By Untis | Nominal Dimensions | Longitudinal | Lateral | Strip | Strip | Cross Rod |
| Inches – ( mm ) | Pitch | Pitch | Width | Thickness | Diameter | |
| A x B x W x T/D | P | PL | W | T | D | |
| inch | 1/2 x 1/2 x 3/8 x 18/11 | 0.506 | 1.14 | 3/8 | 18swg | 11swg |
| mm | ( 12.7x12.7x9.52x1.2/3.0 ) | ( 12.85 ) | ( 28.95 ) | ( 9.52 ) | ( 1.2 ) | ( 3.0 ) |
| inch | 1/2 x 1/2 x 3/8 x 18/11 | 0.540 | 1.14 | 3/8 | 18swg | 11swg |
| mm | ( 12.7x12.7x9.52x1.2/3.0 ) | ( 13.72 ) | ( 28.95 ) | ( 9.52 ) | ( 1.2 ) | ( 3.0 ) |
| inch | 1 x 1/2 x 3/8 x 18/11 | 1.125 | 1.218 | 3/8 | 18swg | 11swg |
| mm | ( 25.4 x 12.7 x 9.52 x 1.2/3.0 ) | ( 28.58 ) | ( 30.91 ) | ( 9.52 ) | ( 1.2 ) | ( 3.0 ) |
| inch | 1 x 1/2 x 3/8 x 18/11 | 1.084 | 1.198 | 3/8 | 18swg | 11swg |
| mm | ( 25.4 x 12.7 x 9.52 x 1.2/3.0 ) | ( 27.53 ) | ( 30.43 ) | ( 9.52 ) | ( 1.2 ) | ( 3.0 ) |
| inch | 1 x 1/2 x 3/8 x 18/11 | 1.062 | 1.198 | 3/8 | 18swg | 11swg |
| mm | ( 25.4 x 12.7 x 9.52 x 1.2/3.0 ) | ( 26.97 ) | ( 30.43 ) | ( 9.52 ) | ( 1.2 ) | ( 3.0 ) |
| inch | 1 x 1 x 3/8 x 18/11 | 1.125 | 2.62 | 3/8 | 18swg | 11swg |
| mm | ( 25.4 x 25.4 x 9.52 x 1.2/3.0 ) | ( 28.58 ) | ( 52.37 ) | ( 9.52 ) | ( 1.2 ) | ( 3.0 ) |
| inch | 1 x 1/2 x 1/2 x 16/6 | 1.062 | 1.4 | 1/2 | 16swg | 6swg |
| mm | ( 25.4 x 12.7 x 12.7 x 1.63/4.88 ) | ( 26.97 ) | ( 35.56 ) | ( 12.7 ) | ( 1.63 ) | ( 4.88 ) |
| inch | 1 x 1 x 1/2 x 16/6 | 1.062 | 2.0 | 1/2 | 16swg | 6swg |
| mm | ( 25.4 x 25.4 x 12.7 x 1.63/4.88 ) | ( 26.97 ) | ( 50.8 ) | ( 12.7 ) | ( 1.63 ) | ( 4.88 ) |
| inch | 1 x 1 x 5/8 x 16/6 | 1.125 | 2.0 | 5/8 | 16swg | 6swg |
| mm | ( 25.4 x 25.4 x 15.87 x1.63/4.88 ) | ( 28.58 ) | ( 50.8 ) | ( 15.87 ) | ( 1.63 ) | ( 4.88 ) |
| inch | 1.5 x 1.5 x 5/8 x 16/6 | 1.5 | 3.0 | 5/8 | 16swg | 6swg |
| mm | ( 38.1 x 38.1 x 15.87 x1.63/4.88 ) | ( 38.1 ) | ( 76.2 ) | ( 15.87 ) | ( 1.63 ) | ( 4.88 ) |
| inch | 2 x 2 x 5/8 x 16/6 | 2.0 | 4.0 | 5/8 | 16swg | 6swg |
| mm | ( 50.8 x 50.8 x 15.87 x1.63/4.88 ) | ( 50.8 ) | ( 101.6 ) | ( 15.87 ) | ( 1.63 ) | ( 4.88 ) |
| inch | 3 x 3 x 5/8 x 16/6 | 3.0 | 6.0 | 5/8 | 16swg | 6swg |
| mm | ( 76.2 x 76.2 x 15.87 x1.63/4.88 ) | ( 76.2 ) | ( 152.4 ) | ( 15.87 ) | ( 1.63 ) | ( 4.88 ) |
Materials Available
• Stainless Steel 1.4301 (304)
• Stainless Steel 1.4401 (316)
• Stainless Steel 1.4541 (321)**
• Stainless Steel 1.4828**
• Mild Steel
• Galvanised Mild Steel
**Limited specifications available
Advantages of Honeycomb include:
• Open mesh construction for quick drainage and
free air circulation
• Flat carrying surface
• Easily cleaned
• Easily joined
• Economical
• High strength to weight ratio
• Positive sprocket drive

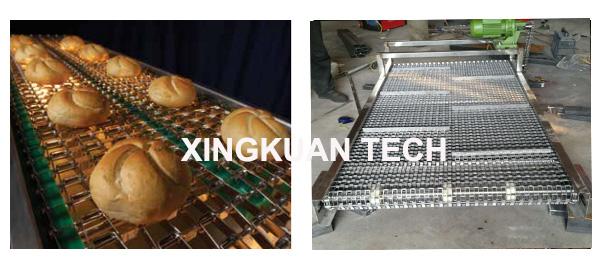

Applications :
Honeycomb belt has many and varied uses, below is a list of typical applications. If you have an application that is not listed below, contact our Technical Sales Engineers to see if Honeycomb belts are right for your needs.
- Transport
- Cooking
- Heating
- Drying
- Cooling
- Drainage
- Freezing
- Baking
- Washing
- Weed Clearing
- Turf Cutting
- Breading
Notice :
- Please send to us about your request with specificaions description or drawings
- Payment term: TT,LC ,or any insurance order way through other platform
- Delivery time : it is very fast if it is standard size .
- Sprockets and other drive components can also be supplied as per request. Please contact us for more detailed specifications regarding our flat wire belts and corresponding sprockets.
