Stainless steel crimped woven wire mesh in 304,316 for sieve industry

Descriptions :

Crimped woven wire mesh is made of high quality is a manufacturing in Ferrous & Non Ferrous Metal . It has various weaving method , such as the double crimped , flat top crimped , intermediate crimped and lock crimped . The crimped woven wire mesh has square opening and rectangle opening , which has different wire diameters and applications .

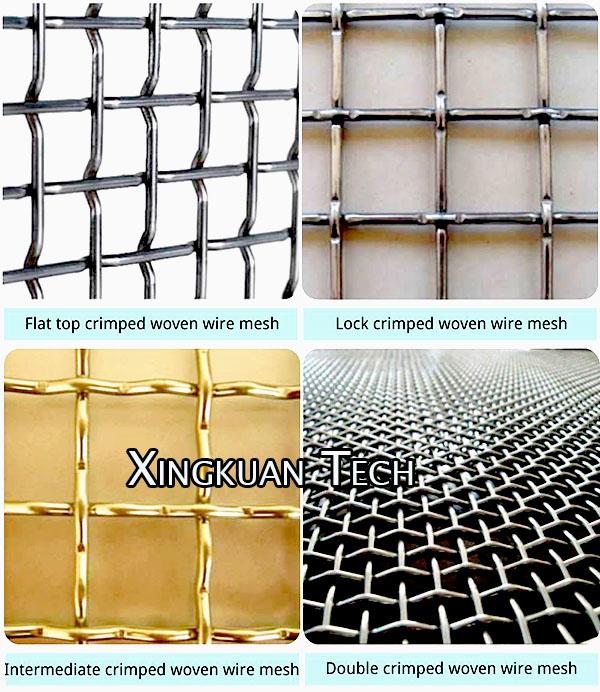

WOVEN WIRE CRIMPS
Conventional Double Crimp Woven Wire
Most common type of woven wire. It is used where the opening is relatively small in comparison to the wire diameter.
Lock Crimp Woven Wire
This woven wire type is used only in coarse specifications to maintain the accuracy of weave throughout screen life, where the opening is large with respect to wire diameter.
Inter Crimp Woven Wire
Used in coarse weaves of lighter gauge woven wire to provide greater stability, tightness of weave and maximum rigidity. Very common in wire mesh openings larger than 1/2" (12.7mm).
Flat Top Woven Wire
Usually starts at 5/8" (15.875 mm) opening and larger. Provides long abrasive resistant life, since there are no projections on top to wear. Flat top woven wire offers the least resistance to flow and is very popular in certain architectural and structural applications where a smooth surface on one side is desirable.

Features

· Optimum bending strength

· High abrasion resistance

· Accurate dimensions

· Excellent stability

Applications

· Mining industry

· Coal factory

· Construction industry

· Food processing and meat industry

Used for

· Grid window

· Poultry protection

· Concrete reinforcement

· Building construction

The requested diameter , Aperture (opening hole ), width , length , can be weaved by usage !

Lots of stock with a variety size are available from Hebei xingkuan tech Co.,Ltd

Just contact us with your request , freidnly to talk with you and hope to give you some valued suggestions !
