Fence Square Crimped Wire Mesh Stainless Steel 304 201 316 316L
Square Wire Mesh Crimped Wire Mesh Stainless Steel 304,201,316,316L
Descriptions :
Crimped wire meshes are woven by previously crimped wires provides accurate openings and is woven tighter than plain weave.
Crimped Wire Meshes also named Space Screen and Square Mesh in 28 mesh and coarser are typically woven of precrimped wires.
The hole can be square ,rectangular ,triangle or customized .
.
Quick details :

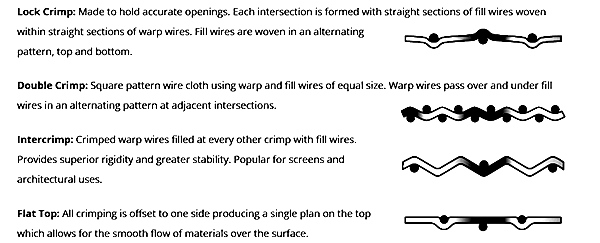

Types of weaving : Crimped before weave, double-direction separate, ripples flections, tight lock flections, flattop flections, double-direction flections, list-direction separate ripples flections
Wire Diameter (mm) | Aperture (mm) | Mesh | Length (M) | Weight (Kg) |
4.00 | 40 | 0.58 | 30 | 142 |
4.00 | 30 | 0.75 | 30 | 182 |
4.00 | 25 | 0.87
| 30 | 213 |
3.2 | 25 | 0.87 | 30 | 141 |
3.2 | 20 | 1.1 | 30 | 169 |
2.6 | 20 | 1.12 | 30 | 116 |
2.6 | 18 | 1.23 | 30 | 127 |
2.6 | 15 | 1.44 | 30 | 173 |
2.0 | 15 | 1.49 | 30 | 92 |
2.0 | 12 | 1.8 | 30 | 110 |
2.0 | 10 | 2.12 | 30 | 127 |
2.0 | 8 | 2.54 | 30 | 155 |
1.8 | 7 | 3 | 30 | 149 |
1.8 | 6 | 3.25 | 30 | 161 |
1.6 | 7 | 3 | 30 | 117 |
1.6 | 6 | 3.35 | 30 | 131 |
1.6 | 5 | 3.85 | 30 | 150 |
1.6 | 4 | 4.5 | 30 | 176 |
1.6 | 3 | 5.5 | 30 | 215 |
1.4 | 6 | 3.5 | 30 | 105 |
1.4 | 5 | 4 | 30 | 120 |
1.4 | 4 | 4.7 | 30 | 140 |
1.2 | 8 | 2.7 | 30 | 59 |
1.2 | 7 | 3.1 | 30 | 68 |
1.2 | 6 | 3.5 | 30 | 77 |
Wire Diameter (mm) | Aperture (mm) | Mesh | Length (M) | Weight (Kg) |
1.2 | 5 | 4 | 30 | 88 |
1.2 | 4 | 4.9 | 30 | 99 |
1.2 | 3 | 6 | 30 | 132 |
1.0 | 6 | 3.6 | 30 | 55 |
1.0 | 5 | 4.25 | 30 | 65 |
1.0 | 4 | 5 | 30 | 76 |
1.0 | 3.2 | 6 | 30 | 92 |
1.0 | 3 | 6.35 | 30 | 97 |
1.0 | 2.18 | 8 | 30 | 122 |
0.8 | 2.83 | 7 | 30 | 68 |
0.8 | 2.38 | 8 | 30 | 78 |
0.8 | 2.2 | 8.5 | 30 | 83 |
0.8 | 2 | 9 | 30 | 88 |
0.8 | 1.75 | 10 | 30 | 98 |
0.8 | 1.5 | 11 | 30 | 108 |
0.8 | 1.3 | 12 | 30 | 118 |
0.7 | 1.4 | 12 | 30 | 90 |
0.7 | 1.84 | 10 | 30 | 75 |
0.6 | 1.21 | 14 | 30 | 77 |
0.6 | 1.52 | 12 | 30 | 66 |
0.6 | 1.94 | 10 | 30 | 55 |
0.5 | 1.3 | 14 | 30 | 54 |
0.5 | 1.09 | 16 | 30 | 61 |
0.5 | 0.9 | 18 | 30 | 69 |
0.5 | 0.77 | 20 | 30 | 76 |
Applications :
1. As wire mesh for pig breeding, mine, and stone works, glass factory,
coal mine, Potroleum, hardware products, etc.
2. Heavy duty crimped wire mesh products are mostly used as screen
in mining, coal factory, construction and other industries.
3. Stainless steel crimped wire mesh is mainly used in food stuff, mine,
industry, pharmacy, metallurgy, machinery, protection, construction,
arts and crafts.
WHOLE YEAR ,We Keep a large stock for different Aperture /Opening with different thick of wire .
Contact us ! Meeting urgent Market needs is our main purpose to get more shares for our clients .
