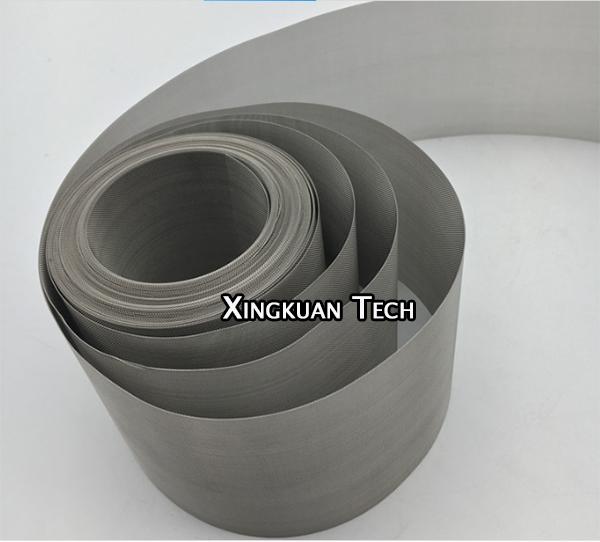

Filter Belts For Continuous Screen Changers Stainless Steel Material

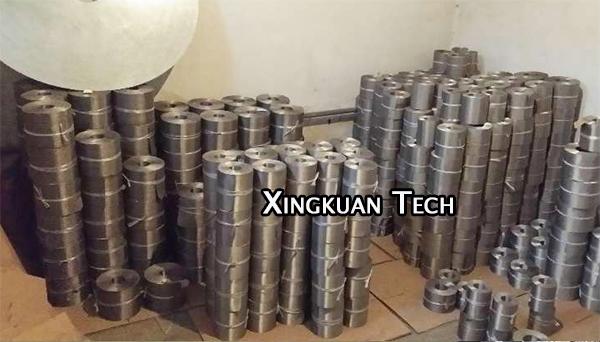

Filter Belts for Continuous Screen Changers,stainless steel material (stock )
Quick Detail :
- Mesh Size: 48 × 10 mesh, 72 × 15 mesh, 132 × 14 mesh, 132 × 17 mesh, 152 × 24 mesh, 152 × 30 mesh, 260 × 40 mesh, 250 × 40 mesh, 400 × 120 mesh, etc.
- Popular SS belt width: 67mm, 95mm, 97mm, 100mm, 127 mm, 133mm, 150mm, 157mm, 190mm, 210mm, 300mm, 400mm;
- Copper clad steel continuous screen: 230mm, 380mm; And other customized, maximum width is 0.5 m.
- Standard length: (stainless steel ) 10 - 30 meters or (copper clad steel ) 50-80 meters.
- Materials: 304, 304L, 316, 316L, 430, copper clad steel, etc.
- Weave style: reverse dutch weave pattern (reverse plain dutch weave and reverse twill dutch weave).
- Filtration Accuracy:Continuous screen 300 micron, 200 micron, 125 micron, 100 micron, 20 micron, etc.
- Other size available.
Applications:
Filter Belts for Continuous Screen Changers. Continuous filter belts, refers to reverse dutch weave filter belts made of stainless steel wires. Used with screen changers, the automatic belt filter system allows continuous and uninterrupted production.
The stainless steel reverse dutch extruder screen belt are widely applied on PC, PP, PE, PS, HIPS, PET, PVC and other plastic sheet extruder, the membrane machine, granulator, and nonwoven fabrics, color masterbatch, filler, leather chemical fiber extruder, etc.
Specifications: other mesh size is available !
| Reverse Dutch Weave Continuous Filter Belts | |||
| Weave of Type | Mesh/Inch | Wire Diameter mm |
Nominal Micron μm |
| TRD | 48 x 10 | 0.50 X 0.50 | 400 |
| TRD | 72 x 15 | 0.50 x 0.50 | 300 |
| TRD | 132 x 14 | 0.35 x 0.45 | 200 |
| TRD | 132 x 18 | 0.35 x 0.44 | 180 |
| TRD | 152 x 24 | 0.27 x 0.40 | 160 |
| TRD | 152 x 30 | 0.27 x 0.30 | 130 |
| RPD | 250 x 40 | 0.15 x 0.25 | 90 |
| RPD | 260 x 40 | 0.15 x 0.27 | 125 |
| RPD | 280 x 70 | 0.089 x 0.21 | 45 |
| RPD | 325 x 39 | 0.13 x 0.24 | 55 |
| RPD | 600 x 125 | 0.043 x 0.12 | 20 |
| RPD | 720 x 150 | 0.035 x 0.107 | 15 |
Notice :
- MOQ: 1 ROLL
- Delivery time : within 2 days !
