Reverse Dutch Weave Filter Band Wire Mesh Belt For Extrusion Stainless Steel 302 304 304A
Reverse dutch filter band wire mesh belt for extrusion stainless steel 302,304,304A
Quick Detail :

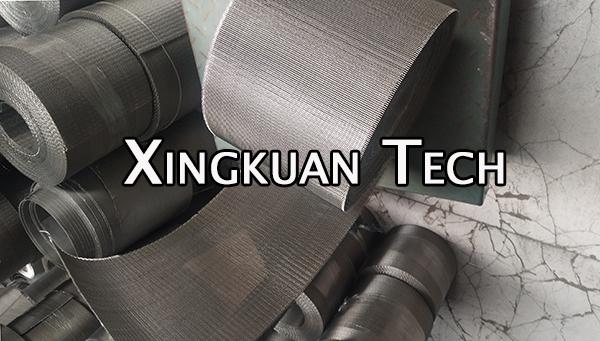

The filter belts are usually produced in reverse dutch weaving type, so it can load greater strength in filtration. It is woven from high tensile stainless steel wire, and widely used in separating foreign particles out of molten plastic in plastic industries. we can produce a wide range of extruder screen belt for continuous screen changers, extruder screen packs and extruder screen discs.
We are a professional weaver of Reverse Dutch woven wire mesh. We can offer various grades. The normal specifications as follows:
Width:97mm,100mm,110mm,120mm,127mm,130mm,133mm,150mm etc.
Length:10m,20m/roll
| Reverse Dutch Weave Belts | |||
| Weave of Type | Mesh/Inch | Wire Diameter | Nominal Micron |
| mm | μm | ||
| TRD | 48 x 10 | 0.50 X 0.50 | 400 |
| TRD | 72 x 15 | 0.50 x 0.50 | 300 |
| TRD | 132 x 14 | 0.35 x 0.45 | 200 |
| TRD | 132 x 18 | 0.35 x 0.44 | 180 |
| TRD | 152 x 24 | 0.27 x 0.40 | 160 |
| TRD | 152 x 30 | 0.27 x 0.30 | 130 |
| RPD | 250 x 40 | 0.15 x 0.25 | 90 |
| RPD | 260 x 40 | 0.15 x 0.27 | 125 |
| RPD | 280 x 70 | 0.089 x 0.21 | 45 |
| RPD | 325 x 39 | 0.13 x 0.24 | 55 |
| RPD | 600 x 125 | 0.043 x 0.12 | 20 |
| RPD | 720 x 150 | 0.035 x 0.107 | 15 |
Notice : Stock , Any MOQ is ok . Sample is ok ! Delivery time : 1-2 days !
