1 Bar U Clamp Pressure Gauge
100mm -30 inHg -1 bar Dual Scale All Stainless Steel Vacuum Pressure Gauge
Description
In applications involving severe pressure fluctuation or pulsation, the use of restrictors and/or snubbers is recom- mended. In addition, liquid-filled gauges increase the service life of gauges in these conditions. liquid- filled gauges are generally filled with glycerine. Silicone for larger temperature extremes and Halocarbon® for use with oxidizing agents such as chlorine, oxygen and hydrogen peroxide are also available.
Applications
♦ Practically all industries make use of vacuum, from pick and place in the automotive industry, food & beverage, manufacturing, pharmaceutical, chemical, nautical, etc. The vacuum gauges are important devices to ensure optimal performance and safety of the system. They may be used for pick-and-place applications, keeping the workplace clean from pollutants, transport materials, etc.
Special features
♦ Reliable and cost-effective
♦ Design per EN 837-1
♦ Nominal size 40, 50, 63, 80, 100 and 160
|
Design |
EN 837-1 |
|
Nominal size |
100mm |
|
Accuracy |
2.5, 1.6 |
| Pressure range | -30 inHg -1 bar vacuum (customized) |
|
Pressure limitation |
Steady: 3/4 x full scale value |
|
Permissible temperature |
Ambient: -20 ... +60 °C |
|
Temperature effect |
When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span |
|
Process connection |
SS |
|
Pressure element |
SS, C-type |
| Movement | SS |
| Dial | Aluminium, white, without pointer stop pin Black/red lettering |
| Pointer | Aluminium |
| Case | SS |
| Window | Plastic, glass |
| Options |
Other process connection |
Dimensions

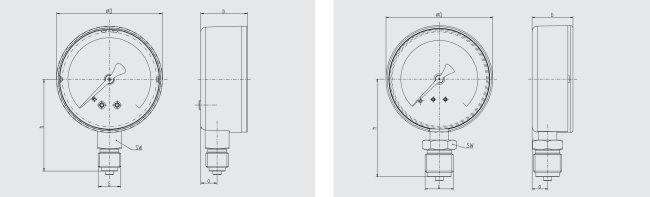

Model M01.01, lower mount (radial)
| Dial Size | Dimensions in mm | Weight in kg | |||||
| a | b | D | G | h | SW | ||
| 40 | 9.5 | 26 | 39 | G1/4 | 36 | 14 | 0.08 |
| 50 | 10 | 27.5 | 49 | G1/4 | 45 | 14 | 0.10 |
| 63 | 9.5 | 27.5 | 62 | G1/4 | 53.5 | 14 | 0.13 |
| 80 | 11.5 | 30 | 79 | G1/2 | 72 | 22 | 0.18 |
| 100 | 11.5 | 30.5 | 99 | G1/2 | 83.5 | 22 | 0.21 |
| 160 | 15.5 | 42 | 160 | G1/2 | 115.5 | 22 | 0.85 |

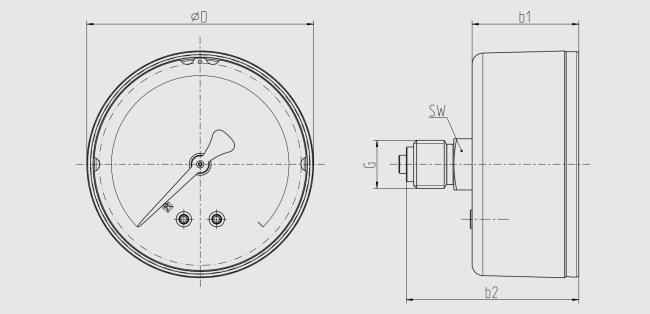

Model M01.02, back mount (axial)
| Dial Size | Dimensions in mm | Weight in kg | ||||
| b1 | b2 | D | G | SW | ||
| 40 | 26 | 42 | 39 | G1/8 | 14 | 0.06 |
| 50 | 29.5 | 47.5 | 49 | G1/4 | 14 | 0.07 |
| 63 | 29 | 47 | 62 | G1/4 | 14 | 0.08 |
| 80 | 32 | 49 | 79 | G1/4 | 14 | 0.11 |
| 100 | 31 | 49 | 99 | G1/4 | 14 | 0.26 |
Ordering information
Model / Dial size / Pressure Range / Process connection / Options
