40mm Medical Pressure Gauge 25 Psi Acrylic Lens Brass Socket For Anesthesia Equipment
40mm Medical Pressure Gauge 25 psi Steel Case and Brass Socket for Anesthesia Equipment
Description
The Bourdon tube pressure gauge consists of a circular tube which is bent over an angle of generally 270°, and of which one end is closed and the other is connected to the process pressure. The closed end can move freely. This movement is transmitted via a transmission mechanism to the pointer of the pressure gauge, as you can see in the pressure gauge animation. With the rack and pinion of the transmission mechanism, the movement of the Bourdon tube may be amplified so that the pointer rotates from start to end of the scale.
Applications
Medical Inflation Device
Inflation Device Kits
Balloon Inflation Device
Inflation Syringe
Inflate and deflate dilation balloon
Manual balloon catheter pump
Special features
Constructed from hygienic materials
|
Design |
EN 837-1 |
|
Nominal size |
40mm |
|
Accuracy |
2.5 |
| Pressure range | 25 psi |
|
Pressure limitation |
Steady: 3/4 x full scale value Fluctuating: 2/3 x full scale value Short time: full scale value |
| Permissible temperature |
Ambient: -20 ... +60 °C Mediium: +60 °C maximum |
|
Ingress protection |
IP65 |
|
Temperature effect |
When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span |
|
Process connection |
Brass, copper alloy |
|
Pressure element |
Brass |
| Movement | Brass |
| Dial | ABS, colorful, without pointer stop pin, customized |
| Pointer | Aluminum |
| Case | Painted steel |
| Window | PC |
| Unit |
ATM, PSI |
| Thread | G, BSP, PT, BSPT, NPT, other connections |
| Options | Customized logo |

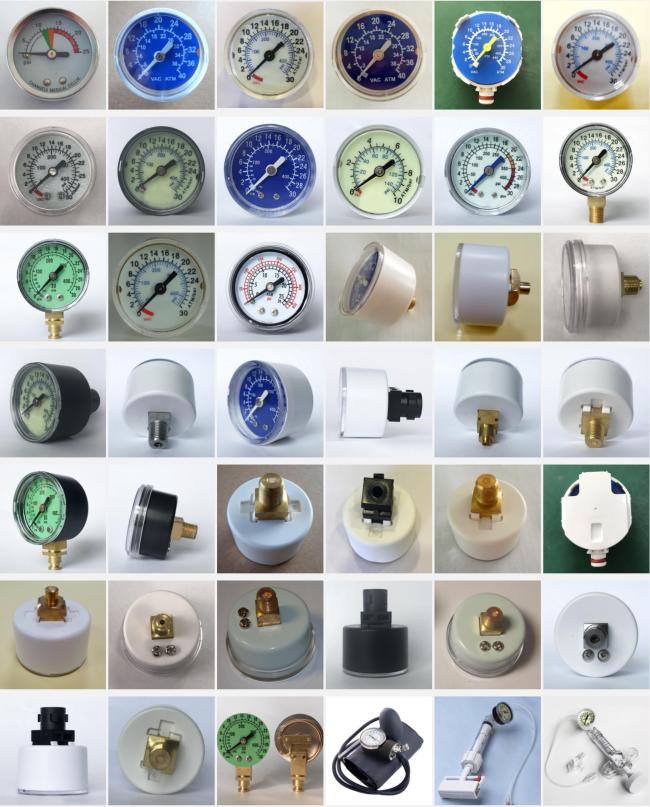

Popular medical pressure gauge
Ordering information
Model / Dial size / Pressure Range / Process connection / Options
