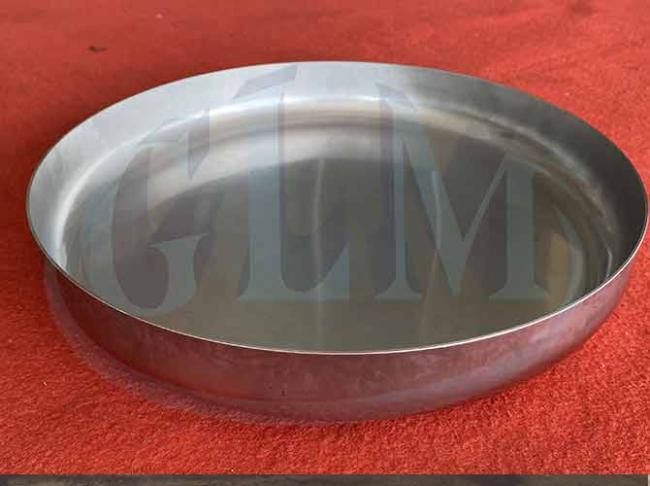

Q345R 10000mm Pressure Vessel Dished Head Dish End Forming ASME Standard
High Pressure Dish Head and Low Price Dish Head with ASME Standard
Description
For mould pressing we could produce up to 6,100mm in diameter and thickness up to 300mm; as to spinning, diameter up to 10,000mm and thickness up to 50mm, which is for elliptical, hemispherical, torispherical, conical, flat and spherical head in different kinds of material, like carbon steel, stainless steel, Alu, Ni & Ni Alloys, Cu & Cu Alloys, Ti & Ti Alloys, Zi and all cladded material combinations.
Application:
The ellipsoidal head has good mechanical properties better than the torispherical head. Due to the application of spinning manufacturing process in recent years, the fabrications of the larger diameter elliptical head is also can be realized. ASME elliptical dished heads are used in the construction of tanks for unfired pressure vessels, such as liquefied petroleum gas and air receivers.
Specifications:
| Brand Name: | GLM |
| Diameter: | 89mm--10000mm |
| Thickness: | 2mm--300mm |
| Reduction Ratio: | about 10% |
| Material: | Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations. |
| Forming method: | Hot forming,cold forming |
| Surface Treatment: | Sand Blasting,Pickling,oil,discaling |
| Inspection: | UT,RT,MT,PT,TOFD. |
| Applicable Standard: | ASME ,PED and GB |
| Certificate: | ISO9001,ISO45001,OHSAS18001 |
| Applications: |
Such as oil, chemical industry, water conservancy, electric power, boiler, machinery, metallurgy, sanitary construction etc. |
| Package: | Wooden cases ,wooden pallet,Steel pallet or as per customers requirement |
| Customized Product: | Available |
