Workover rig pneumatic portable Auger Drill Rig diesel engine driven

Auger Drill Rig

Application of Auger Drill Rig:

Auger drill rig can be used for urban construction, railway, highway, river, water and electricity engineering drilling rock anchor hole, anchor hole, blasting hole, grouting hole and other drilling construction.
Features:
1. the submersible drilling machine adopts motor by high-performance reducer for rotary power; Use cylinders for propulsion. The hydraulic system is omitted, so the mechanical efficiency is high, the cost is low and the performance is stable.
2. with anti jamming protection, when the drilling tool is stuck, the motor is not easy to burn, reducer is not easy to damage.
3. light and easy to move, the total weight of the submersible drilling machine is less than 500Kg, and can be decomposed into three pieces, easy to move, shelf.
4. the use of rolling drag plate, track is not easy to wear.
5. DTH auger drill rig adopts semi-automatic disassembly drill pipe, high work efficiency.

Parameters of Auger Drill Rig:

Features of Auger Drill Rig:

1. Mechanical transmission, hydraulic feed, the output efficiency of the whole machine is more than 95%;

2. Compact structure, reasonable connection design, can be divided into motor, rotary, gear box winch, frame control mechanism four parts, simple disassembly, convenient assembly;

3. Hydraulic chuck design, simple operation can achieve easy conversion of 360 degrees drilling.

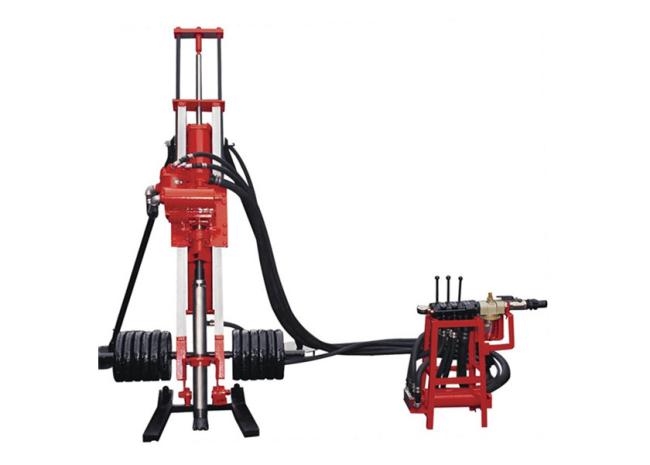

Pictures of Auger Drill Rig:
