AC ROHS Single Phase Roller Door Motor Commercial Use 800kg
Ac 220v Single 800kg AC Roller Shutter Motors Commercial Use
Small size and high power. GATECH’S Mini range of roller shutter motor combines ease of installation with enormous power and reduced size, allowing for greater versatility in tight spaces.
| Model |
Rated output torque (N.m) |
Rated output speed (r/min) |
Motor power (w) |
Rated voltage (V/Hz) |
Rated current (A) |
Continuos working time(min) |
Durm dube outer diameter (mm) |
Max lifting force (kg.f) |
Max lifting height (m) |
| AC300-1P | 225 | 5.4 | 200 | 220/50 | 2.8 | 8 | 114 | 300 | 6 |
| AC600-1P | 412 | 5.4 | 300 | 220/50 | 3.3 | 8 | 140 | 600 | 6 |
| AC800-1P | 647 | 4 | 400 | 220/50 | 4.7 | 8 | 165 | 800 | 8 |
| AC1000-1P | 809 | 4 | 400 | 220/50 | 4.9 | 8 | 165 | 1000 | 8 |
| AC1500-1P | 809 | 3.5 | 700 | 220/50 | 8.2 | 8 | 165 | 1500 | 9 |
Supporting garage door up to 1000kg in 220V version
Built-in 433 MHZ and electromechanical limit switch;
Packed in 2 transmitters with 50m long range
100% copper wire inside the motor.
24 months quality life warranty;
Installation tips:
1.When there is a thunderstorm, try to disconnect the external power supply;
2.When using the rolling shutter door operator, the operator shall not leave the site. If any abnormality is found, the power supply should be cut off immediately, and the fault should be eliminated by re-use.

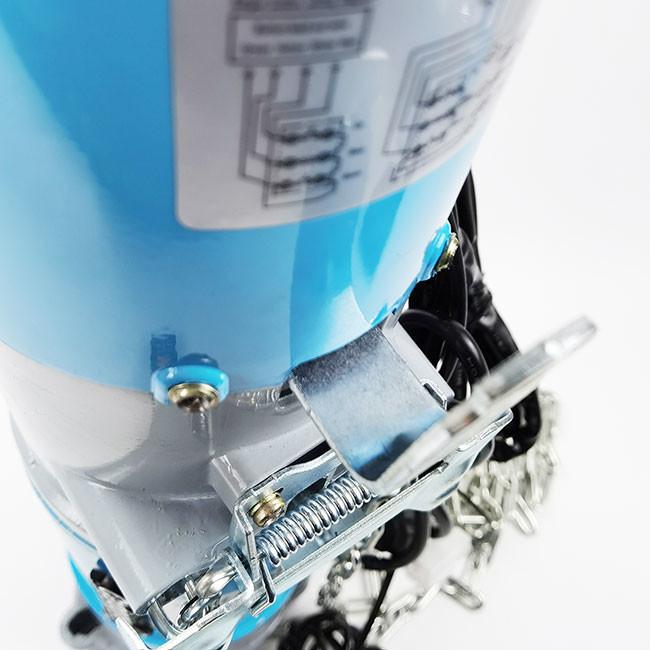

Details for Rolling shutter motor
FAQ
What is your MOQ?
One unit is available,but it is sample cost. For large quantity,Please negotiable with us.
What is your payment term?
For sample ,T/T in advance.For customize order,35% T/T in advance,balance before shipping.
How long is your product warranty?
Two years when you got goods.
What is the delivery time?
For item in stock, it will take 2-3days to seaport after payment.
