27*32 Commercial Sliding Gate Opener Motor 1500kg 12 M/Min 44 IP Rating
Ac 220v Single Phase 1500kg Automatic Sliding Gate Opener Commercial Use
The main part of an electric automatic sliding gate is its door motor. These door motors come in two different variants - AC and DC. The main difference is that DC motors are used for small gates with solar power, battery backup because AC motors are used for heavier gates because of their strength and longevity.
The design of the GATECH system combined with the continuous lubrication of the mechanical components ensures a very long trouble-free service life. The motor and gearing provide smooth performance in a wide variety of operating conditions.
|
G15 Residential use |
|
| Power Supply | 220V +/- 10%, 50Hz- Single Phase |
| Power of motor | 500W |
| Output Pinion | 19 Tooth Mod 4 |
| Operating Speed | 12m/min |
| Motor Cooling | Direct Drive Fan (1400RPM) |
| Ambient Temperature Range | From-37'F (-35°C) to 149.F (+65'C) |
| Motor Thermal Protection | Electronic |
| Maximum Gate length | 20m |
| IP Rating | 44 |
| Shipping Mass of Unt | 17kg(- 37Ibs) |
| Maximum Gate Mass | 1000kgs-1500kg (2025~3307 lbs) |
GATECH operators provide sliding door motors up to 1500kg in 220V and 110V versions;
G15 automatic sliding gate operator is equipped with a built-in control panel;
Built-in 433 MHZ and electromechanical or magnetic limit switch;
G15 series is heavy duty gate motors and support standard sliding gate with 1500kG in weight;
Galvanized steel gear rack is one of the necessary for this gate motor to work;

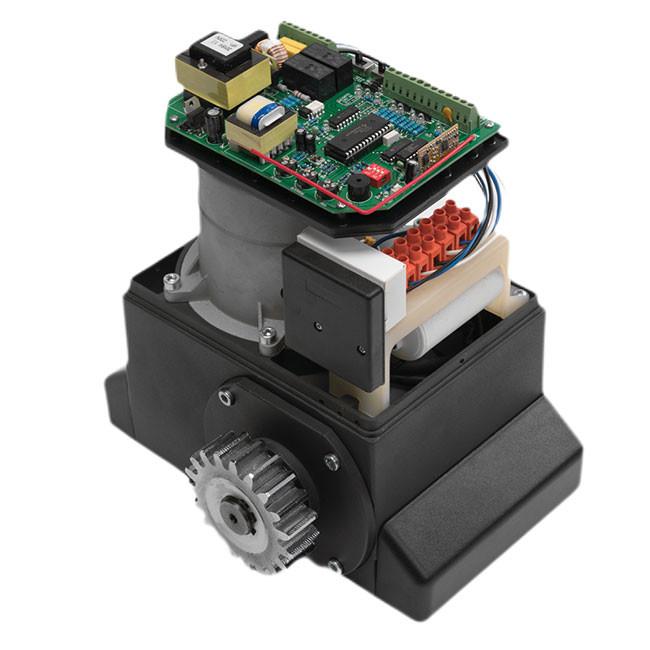

PCB inside of sliding gate motors
The gearbox is lubricated, and the coded remote control allows transmission of 30 to 50 meters. This sliding control panel supports photocell input to provide additional safety features, and limit switches can achieve reliable and accurate positioning. The shell is made of high-quality materials with high quality
FAQ
What is the input voltage for this gate motors ?
220V input voltage.
What is the Max weight of gate?
Max weight supporting is 1500kgs.
How many models do you have for sliding gate openers ?
G6,G8,G15,G20,G30
What is the frequncy of your remote control for this sliding gate motors?
Remote control models are 433Hz.
What is the longest remote control distance in meters?
Long range distance reach 100m.
How many gate motors can be controlled by a remote control?
4 gate motors for a remote control.
Can you use our brand?
Yes, we accept OEM depend on your quantities.
What's the payment you accept?
Payment<=5000USD, 100% T/T in advance. Payment>=10000USD, 30% T/T in advance ,balance against of copy of B/L.If you have another questions, pls feel free to contact us.
How long is your product warranty?
Two years when you got goods.
How about the delivery time?
For standard products, 10-25 days are available.
