600kg Single Garage Roller Door Motor Ac 220v 300W Remote Control
Ac 220v Single 600kg Copper Garage Roller Shutter Motors Home Use

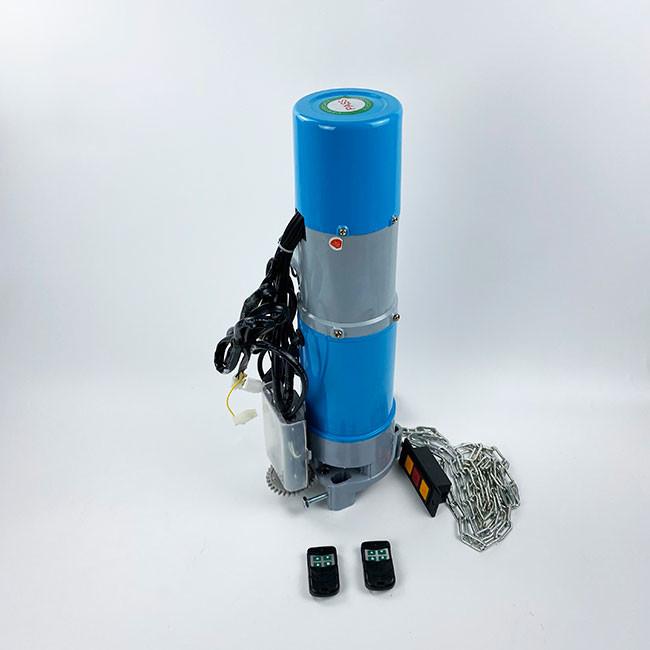

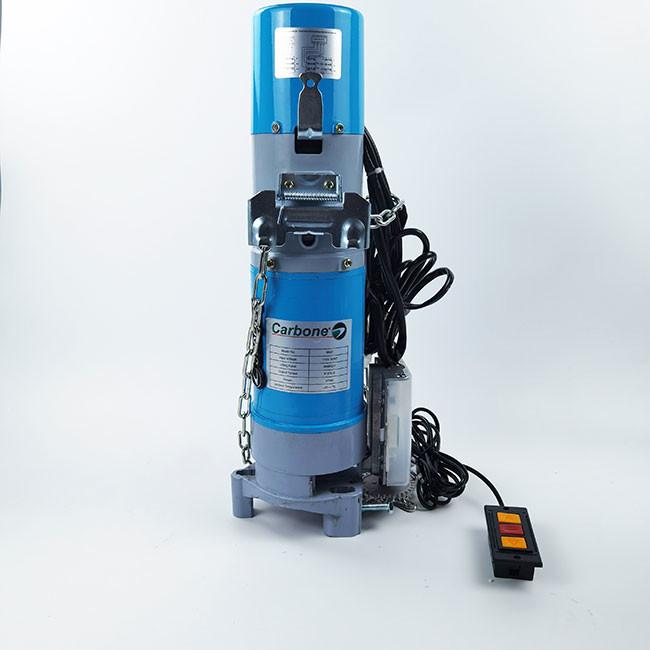

Gatech roller shutter motor has been continuously exported for over ten years and is our best selling product.This rolling shutter motor is easy to install and has proven to be a reliable accessory in a variety of application. Such as buildings, garages, shopping malls, factory, warehouses, docks, airports, etc.It has the following advantages:
1. Beautiful shape, advanced structure, strong power;
2. Using imported electrical components, safe and stable;
3. Low noise, small vibration and low power consumption;
4. Ligh weight, small size, easy installation, long life, reliable performance;
5. Manual operation is convenient in course of power failure, and power storage device can also be equipped;
6. It could be equipped with remote control assembly to realize remote operation; With motor operation overheating protection device.
| Model |
Rated output torque (N.m) |
Rated output speed (r/min) |
Motor power (w) |
Rated voltage (V/Hz) |
Rated current (A) |
Continuos working time(min) |
Durm dube outer diameter (mm) |
Max lifting force (kg.f) |
Max lifting height (m) |
| AC300-1P | 225 | 5.4 | 200 | 220/50 | 2.8 | 8 | 114 | 300 | 6 |
| AC600-1P | 412 | 5.4 | 300 | 220/50 | 3.3 | 8 | 140 | 600 | 6 |
| AC800-1P | 647 | 4 | 400 | 220/50 | 4.7 | 8 | 165 | 800 | 8 |
| AC1000-1P | 809 | 4 | 400 | 220/50 | 4.9 | 8 | 165 | 1000 | 8 |
| AC1500-1P | 809 | 3.5 | 700 | 220/50 | 8.2 | 8 | 165 | 1500 | 9 |
One set in two cartons, plastic bag inside, carton outside
( The outside cartons could be customized according to customers' requirement, like printing logo or words on it or according to your own design to print it.)
A 20 GP container could hold about 520-550 PCS AC motor, if DC motors, 480-520 PCS is available.
